מגבר, 2 ערוצים, 240w
• Switching power technology digital power amplifier
• Class-D power amplifier of minimum power consumption
• 1RU height for less rack space and less heat generation
• Two channel power amplifier into 19” rack mount unit
• Rated power output at 2x240W
• Two channel separate speaker outputs 8 ohms /100V
• Balanced line input by phoenix connector for two channels
• Each input with separate gain control.
• Each two channel with high-cut filter.
• Built-in auto standby feature to save power consumption
• Separate two channel indicators for protection, clip, input and output
• Complete short circuit, overload, high temp, clip and DC protection
• Wide AC input switchable between 115V and 230V
• 24V DC input is optional.

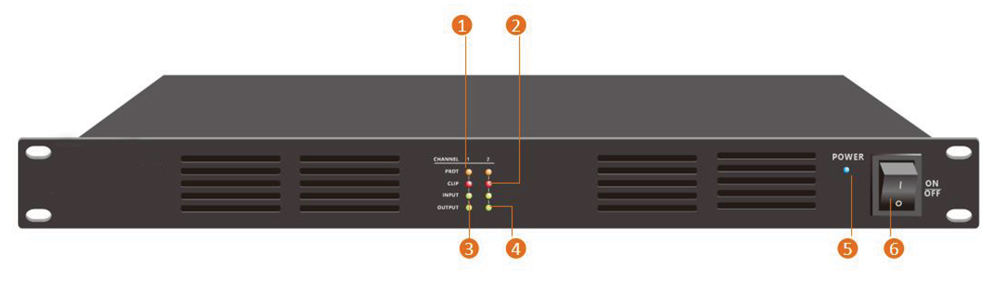

Front Panel:
1. PROT- Protection indicator will light on in orange once the Amplifier comes into protection status. The protection maybe resulted from speaker line short circuit, speaker line open circuit, Amplifier overload and inner working temperature over 55 ohms , this indicator give visually guidance ask for repair and It will light off once these failures been repaired. There are two separate protection indicators for each 2-Channel.

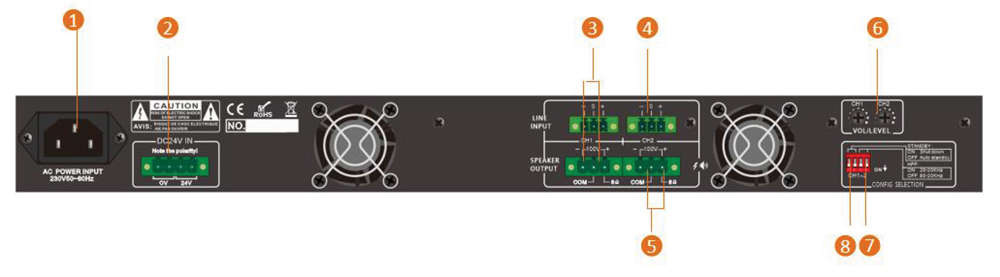

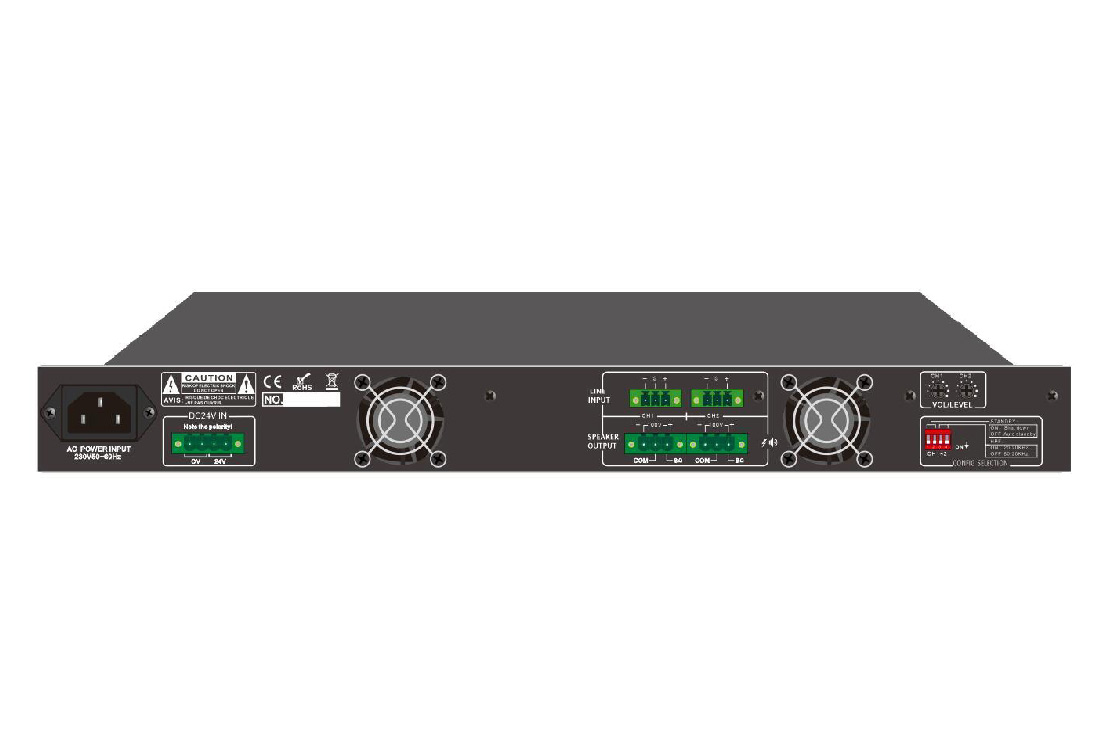

Rear Panel:
1. AC POWER Socket- AC power cord for input from 110V to 230V, the power cord itself is auto-switching.
1. PROT- Protection indicator will light on in orange once the Amplifier comes into protection status. The protection maybe resulted from speaker line short circuit, speaker line open circuit, Amplifier overload and inner working temperature over 55 ohms , this indicator give visually guidance ask for repair and It will light off once these failures been repaired. There are two separate protection indicators for each 2-Channel.
2. CLIP- Clip indicator will light on in red once the input or output is too high. There are two separate CLIP indicators for each 2-Channel.
3. INPUT- Input indicator will light on in green once there is any input signal has been detected. There are two separate input indicators for each 2-Channel.
4. OUPUT- Output indicator will light on in green once there is output signal has been passed. There are two separate output indicators for each 2-Channel.
5. POWER- Power indicator will be light on in blue once the unit has been powered whether by AC or DC.
6. POWER SWITCH-Power switch used to power on and power
1. AC POWER Socket- AC power cord for input from 110V to 230V, the power cord itself is auto-switching.
2. DC24V Battery Input - This input is used for battery power supply, which will be automatically switch on once the AC power supply fails as backup use.
3. 100V SPEAKER OUTPUT-The speaker outputs shall be connected to 100V line loudspeakers, the negative end to the speaker negative end and the positive end to the speaker positive end. There are four channel separate 100V speaker outputs which could be managed respectively. These speaker output are supplied in phoenix connector.
Never mixed the negative end and the positive one, which may cause the short circuit protection.
Never connection the low impedance loudspeaker to these 100V ends, which may burn up the speaker or have heavy distortion.
4. LINE INPUT-The line input support both balanced or unbalanced input, these input are supplied in phoenix connectors. There are four channel separate line inputs which could be managed respectively.
5. 8 ohms SPEAKER OUTPUT- The speaker outputs shall be connected to low impedance 8 ohms loudspeakers, the negative end to the speaker negative end and the positive end to the speaker positive end. There are four channel separate 8? speaker outputs which could be managed respectively. These speaker output are supplied in phoenix connector.
Never mixed the negative end and the positive one, which may cause the short circuit protection.
Never connection the 100V line loudspeaker to these 8? ends, which may burn up the speaker or have heavy distortion.
6. Volume Control- The Volume control is used to adjustment the input volume.
7. HIGH PASS FILTER- The high pass filter function will be enabled or disabled by pre-set the four channel separate dipswitch. There are four channel separate high pass filters which could be managed respectively.
8. AUTO-STANDBY
|
Item |
Amplifier, 2 Channel 240W |
|
Model |
16677 |
|
Description |
Class-D Two Channel Power Amplifier |
|
Rated Power Output |
2*240W |
|
Speaker Output |
4-16 ohms , & 100V |
|
Frequency Response |
L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) |
|
Input |
0.775V, 0dBu, balanced phoenix connector |
|
Input Impedance |
10K ohms |
|
THD |
<0.1% (1KHz/-3dBv, 100W) |
|
S/N Ratio |
>80dB |
|
Crosstalk |
>60dB, 1KHz, Max output |
|
Power Consumption |
550W |
|
Power Supply |
AC input switchable between 115V & 230V, 50-60Hz 24V DC input as option at order request. |
|
Port Output Voltage |
4-16 ohms ,100V (constant-voltage output) |
|
Dimension |
482(W)x420(D)x44(H) mm |
|
Weight |
7.5kg |
