כבל למע"ס חיצוני RG-59 + 2C NNY

 Product

 RG-59 + 2C NNY

 Model

 16717

 1) Inner Conductor

 Copper Covered Steel : 0.58(Ccs21%)

 2) Dielectric

 Solid Pe

 Diameter(Mm)

 3.70 (±0.10) mm

 3) Outer Conductor

 Braid

 Cca Wire

 Braid Wires

 16x8x012mm -Lay 24.8 (+/-3)mm

 Coverage

 91±2%

 4) Sheath

 PE

 Colour

 Black

 Diameter(Mm)

 5.80 (±0.20) mm

 5) 2 Conductors 0.37mm² Conductor

 Copper Wires -

 1x0.68 mm

 Section-

 0.37mm²

 -INSULATION

 PE

 Diameter(mm)

 1.2±0.2mm

 Colour

 Red/Black

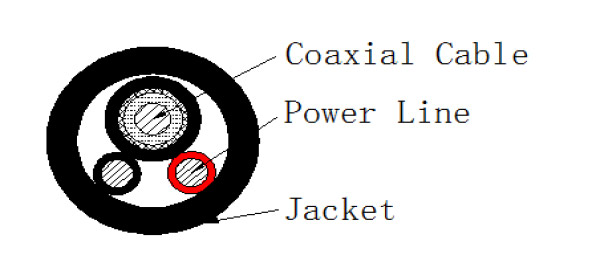

 6) Assembly

 1 Rg59 + 2 Conductors0.37mm² Are Assembled Together

 7) Out Sheath

 PE

 Diameter(Mm)

 7.6 (±0.50) mm

 Min.thickness

 >=0.5mm

 Colour

 Black

 Pressure Or ½ Pressure Extrusion (Not Tubing)

 Electricak Data

 Characteristic impedance at 200 MHz

 75±3 OHMS

 Nominal capacity (800 Hz)

 67 pF/ m

 Insulation resistance at 20°

 > 5000 MOHMS.km

 Dielectric strength at 50 Hz, 1 min

 > 7000V

 Inner Conductor Resistance

 < 310 Ohms/km

 Outer Conductor Resistance

 < 36 Ohms/km

 Velocity of propagation

 66%

 Maximum attenuation

 At 50 Mhz

 10.00 dB/100 m

 At 100 Mhz

 13.00 dB/100 m

 At 200 Mhz

 19.40 dB/100 m

 At 400 Mhz

 29.80 dB/100 m

 At 550 Mhz

 34.60 dB/100 m

 At 600 Mhz

 38.20 dB/100 m

 At 750 Mhz

 40.95 dB/100 m

 At 860 Mhz

 43.80 dB/100 m

 At 1000 Mhz

 48.00 dB/100 m

 2x0.37mm²

 Voltage

 250 V

 Test voltage, 1 min, 50Hz

 2000 V

 Electrical resistance

 < 26 Ohm / km

 Mechanical data

 Temperature range

 Static

 -30C - +70C

 Dynamic

 -20C - +70C

 Minimum bending radiu

 70mm
