כבל למע"ס RG-174 + מתח בגליל 100 מטר
|
Product |
RG-174 + 2C |
|
|
Model |
16715 |
|
|

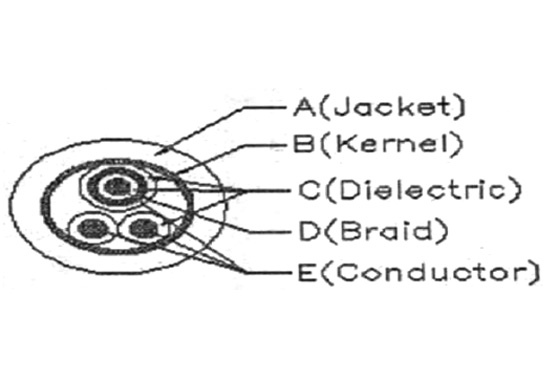

Component |
Coaxial Cable With Power Cable |
|
|
Coneuctor |
Material |
Tinned Bare Copper Wire |
|
Dia:(mm) |
7x0.16±0.01 |
|
|
Insulation |
Material |
SPE |
|
Dia:(mm) |
1.90±0.10 |
|
|
1stBraiding |
Material |
0.10mmx64 TC,28.8mm |
|
Coverage |
>75% |
|
|
Jacket |
Material |
PVC |
|
Dia:(mm) |
3.00±0.10 |
|
|
Color |
Color optional |
|
|
Power Cable |
Material |
Tinned Bare Copper Wire |
|
Dia:(mm) |
7x0.25±0.01 |
|
|
Material |
HDPE |
|
|
Dia:(mm) |
1.80±0.03 |
|
|
Color |
Red & Black |
|
|
Shield |
Material |
13mm AL-FOIL |
|
Oveall Jacket |
Material |
PVC |
|
Dia:(mm) |
5.60±0.20mm |
|
|
Color |
White |
|
|
Bend radius |
20 x D |
|
|
Operating temperature range |
20C to 70C |
|
|
Electrical Properties |
at 20C |
|
|
Max Attenuation 20C |
MHz |
dB/100 m |
|
10 |
9.50 |
|
|
50 |
18.00 |
|
|
100 |
27.00 |
|
|
200 |
40.00 |
|
|
Max.conductor resistance |
<=138.0C/km< |
|
|
Capacitance |
101±3 pF/m |
|
|
Return Loss |
5-200MHz >18 |
|
|
Characteristic Impedance |
50±3 |
|
|
Max.conductor resistance |
<=55.0/km |
|
