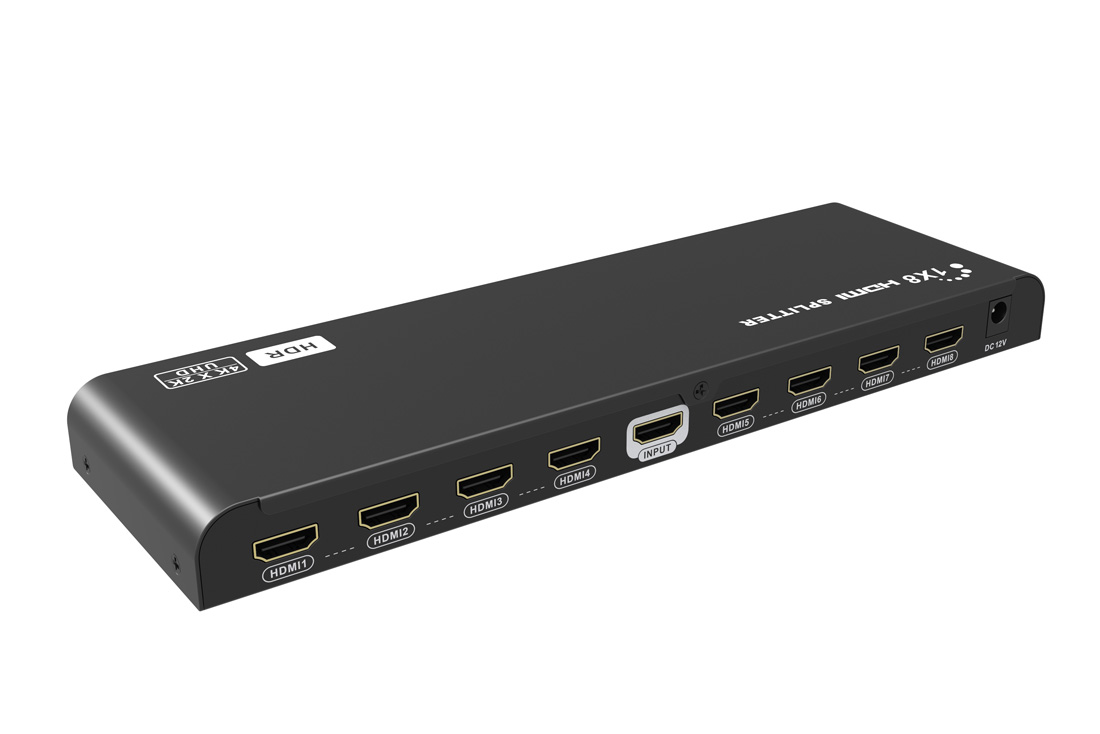

מפצל HDMI 1X8 4K HDR+EDID

18127H :מק"ט

מפצל את אות הוידאו HDMI ממקור אחד ל- 8 תצוגות פלט (מסך/מקרן ועוד..) במקביל.
תומך רזולוציה 4K 60Hz.
תומך HDMI2.0 + HDCP2.2.
תומך 3D + Ultra HD video.
תומך YUV 4:4:4.
מתח הזנה: DC5V 1A (כלול בערכה)


הורדת מפרט טכני
מפצל HDMI

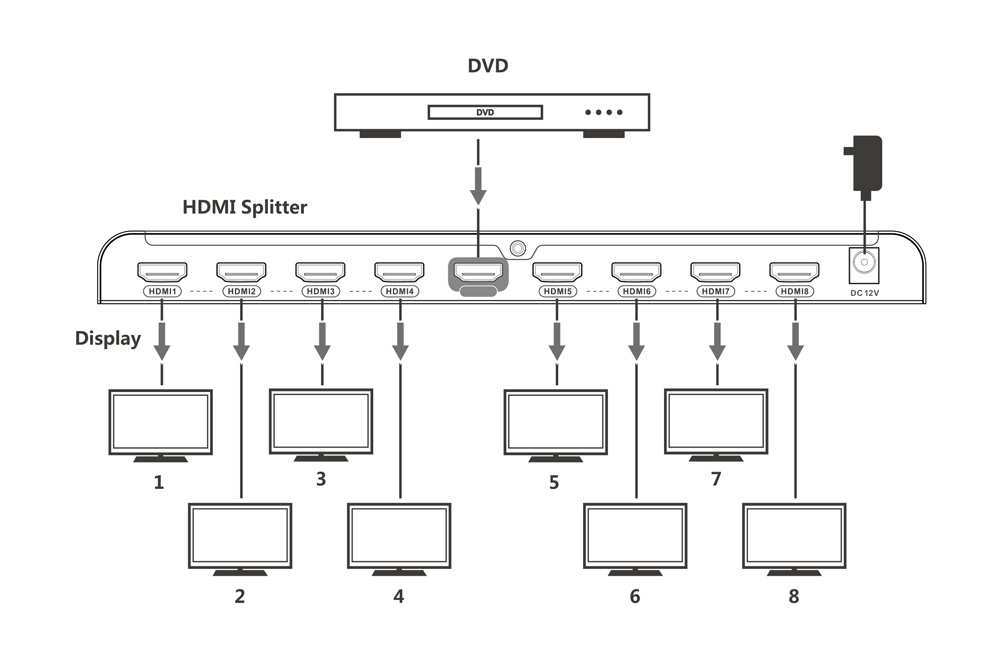

• Distribute 1 HDMI source to 8 HDMI displays
• Support ultra HD resolution 4Kx2K@60Hz
• Support HDMI 3D
• Support YUV 4:4:4
• Support HDR
• HDMI 2.0 and HDCP2.2 compliant
• Low power consumption
• Support configures the video resolution automatically according to the capabilities of each connected
   monitor, allows simultaneous mixed 4K and 1080p display outputs
• Plug and play

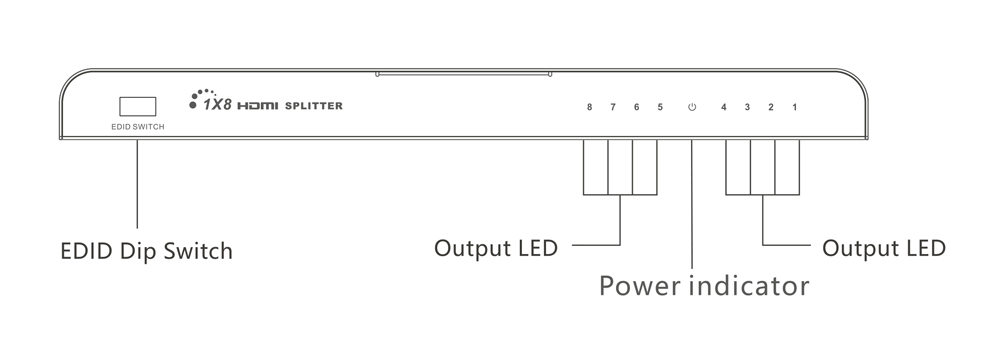

Front Panel:

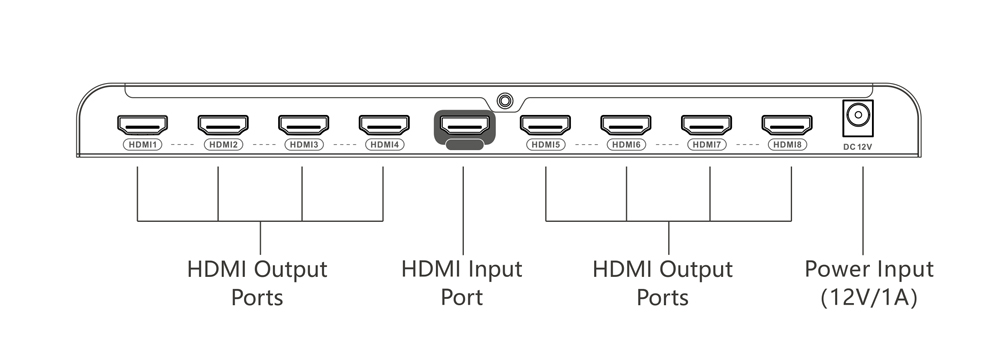

Rear Panel:




Item

1×8 HDMI Splitter 4K@60Hz

Model

18127H

Input Ports

1 x HDMI

Output Ports

8 x HDMI

Power Indicator

led 1 xLED

Signal Indicator

led 8 xLED

HDMI Version

Compatible with HDMI1.4,HDMI2.0

HDCP Version

Compatible with HDCP1.4,HDCP2.2

HDMI Resolution

480i/480p/576i/576p/720p/1080i/1080p/ 4K×2K@24/25/30/60Hz

Frequency Range

25MHz~600MHz

Video Form

Support 3D video and 4K×2K@30/60Hz ultra HD video

Input and Output TMDS

signal 0.7~1.5Vp-p(TMDS)

Input and Output DDC Signal

5Vp-p(TTL)

Audio

Support standard audio and DSD(Direct Stream Digital)and HD(HBR) audio

HDR

Support

EDID Management

Support smart EDID management, available to display different resolution monitors at the same time

Working Temperature

0?~60?

Power Supply

12V/1A

Power Consumption

<8W

Dimension

262mm(L)x81.6mm(W)x23.5mm(H)

Weight

453g

Color

Black
