מזרק PoE 100/1000 Giga
• Up to 60W of Power on 4-pairs
• IEEE 802.3bt Compliant
• Safe on Low Power Devices Receive Only the Power They Need
• Safe and Reliable Power to WLAN Access Points
• Automatic Detection and Protection of Non–standard Ethernet Terminals
• Supports 10/100/1000Base-T LAN environment
• Unique interlocking feature for easy installation
• IEEE 802.3bt Compliant
• Safe on Low Power Devices Receive Only the Power They Need
• Safe and Reliable Power to WLAN Access Points
• Automatic Detection and Protection of Non–standard Ethernet Terminals
• Supports 10/100/1000Base-T LAN environment
• Unique interlocking feature for easy installation
Item |
Active PoE Extender |
Model |
08059 |
Standards Compliance: |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Fast Ethernet IEEE 802.3bt Power over Ethernet Connector: RJ-45 10/100/1000 Mbps |
Connector: |
RJ-45 10/100/1000 Mbps |
PoE Power Output |
|
Pin Assignment and Polarity: |
Data+Power Pairs 1/2 (+), 3/6 (-); Power Pairs 4/5 (+), 7/8 (-) Output Power Voltage: 54-56 VDC |
Power: |
Mode-A+Mode-B 60 Watts Max |
Input Power AC Input Voltage: |
100~240VAC |
Requirements AC Input Current: |
?1.5A @ 100~240 VAC |
Dimensions: |
(L x W x H) / Weight 39*62.7*145mm 490g |
Indicators: |
AC Power (Green) PoE (Orange) |
Environmental Conditions |
|
Operating Temperature: |
-20 ~ 60°C |
Storage Temperature: |
-10 ~ 70°C |
Storage Humidity: |
Maximum 95%, Non-condensing |

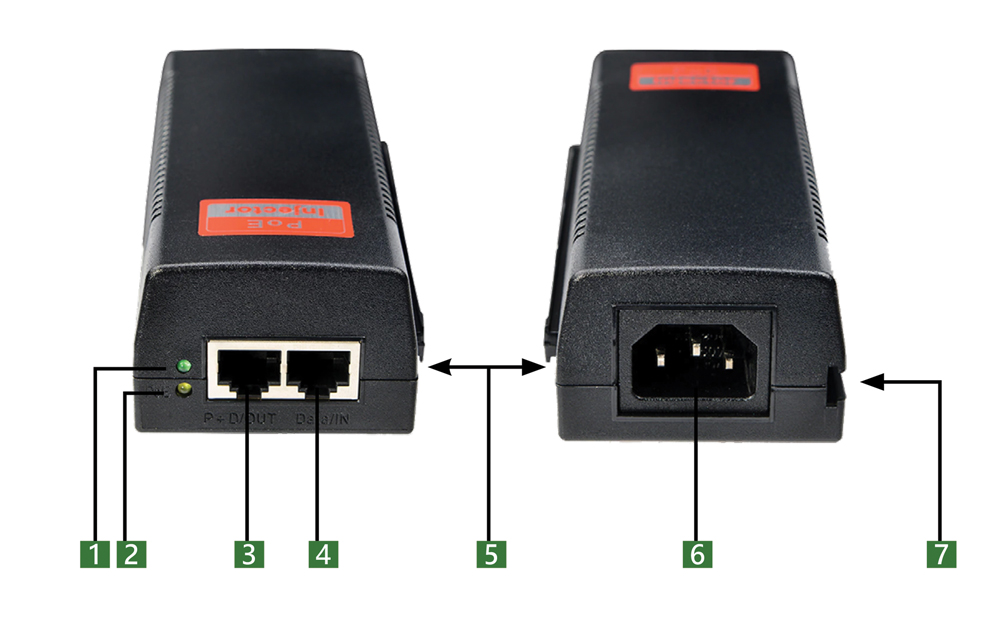

1) Power Led Indicators (Green)
2) PoE Led Indicators (Yellow)
3) RJ-45 Output Port
4) RJ-45 Input Port
5) Interlocking Feature
6) Panel Mounted Male Connector
7) Interlocking Feature
