מפצל/מגדיל טווח + סוויצ´ PoE מתכתי 4+1

Product

4+1 Giga 90W PoE Switch + Extender (up to 250m) IEEE802.3af/at

Model

08031

PoE Input port

Supports 1/2(+),3/6(-);4/5(+),7/8(-)

MAX Input Power 90W

PoE Output port

Supports IEEE802.3af/at

MAX Output Power 30W

Power

Default: No power

Watt

Standby Power Consumption:?5W;

Full-load Power Consumption:?65W;

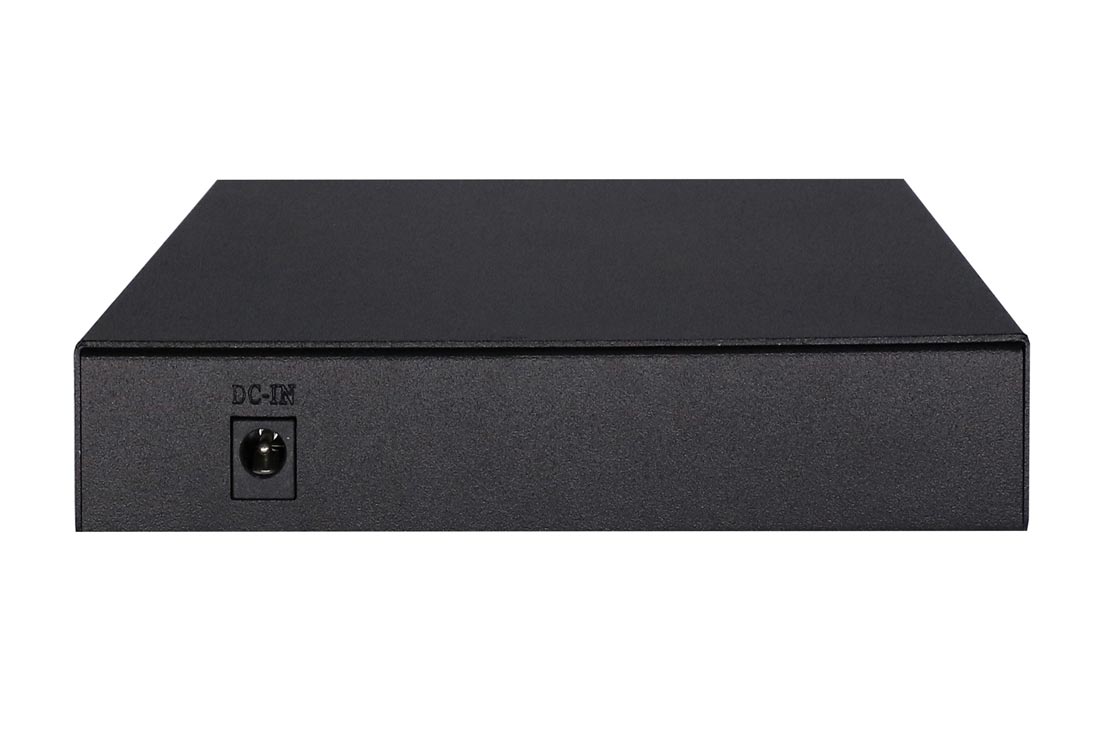

DC In

As Network Extender: DC9-57V MAX 0.5A

As PoE Network Extender: DC37-57V MAX 0.5A

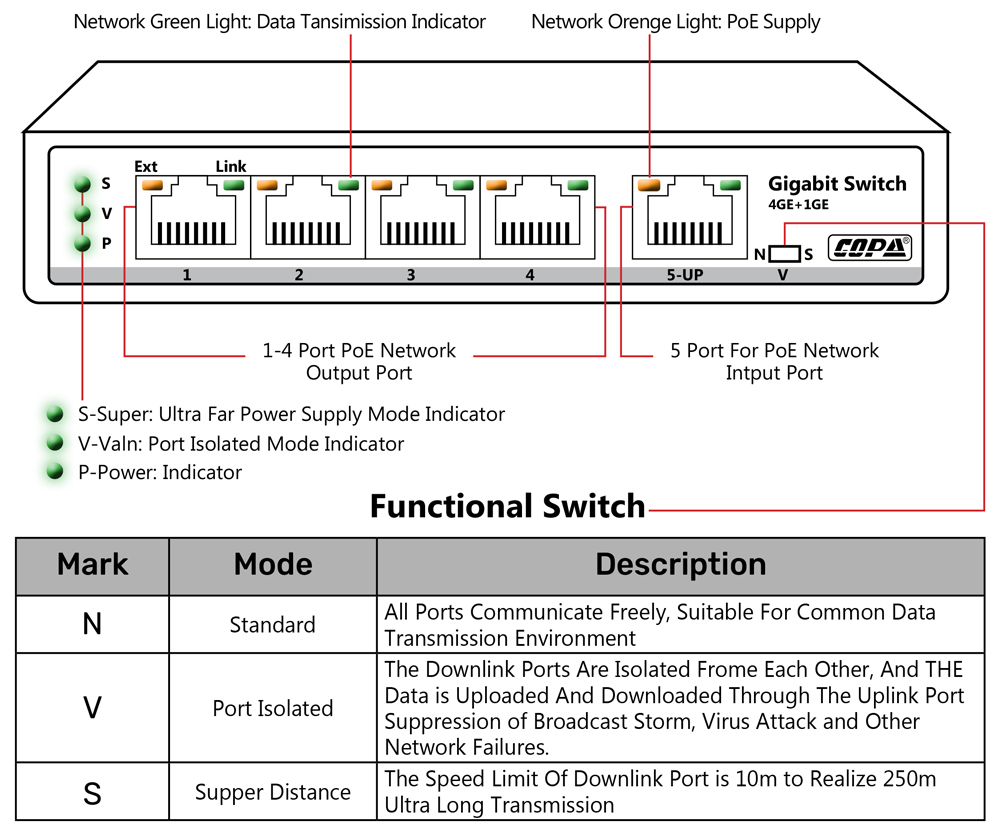

Function

N:(Standard Normal)

V:(Port Isolation)

LED Indicator

Power: Power LED(Over-power LED)

Vlan: (Port isolation LED)

Port:(Green=Link LED+Orange=PoE LED)

Network Protocol

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab1000BASE-T

IEEE 802.3x

IEEE 802.3af/at

Transmission Mode

Store and Forward (full wirespeed)

Bandwidth

12Gbps

Packet Forwarding

7.2Mpps

MAC Address

2K

Buffer

Buffer

Transmission

Distance

10BASE-T : Cat3,4,5 UTP(?250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

1000BASE-TX : Cat6 or later UTP(150 meter)

Operating Temperature/Humidity

-10~+55°C;5%~90% RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95% RH Non coagulation

Product size/Packing size(L*W*H)

140mm*80mm*28mm

215mm*175mm*45mm

N.W/G.W(kg)

0.3kg/0.4kg

Installation

Desktop

Lightning protection level

3KV 8/20us;

IP30

Certificate

CE mark, commercial;CE/LVD EN60950;

FCC Part 15 Class B;RoHS;

Warranty

Whole device for 1 year(Accessories not included)
