פנל אינטרקום מצלמה 6 דיירים קורא תגים Mifare

18734 :מק"ט

DRC-6ML/RF1 :דגם

אתר היצרן הורדת מפרט טכני

• RF card registration and deletion possible
• 6 direct buttons
• RF card registration and deletion possible24 Direct buttons panel(DRC-24XM) expansibility
• Built-in white LED

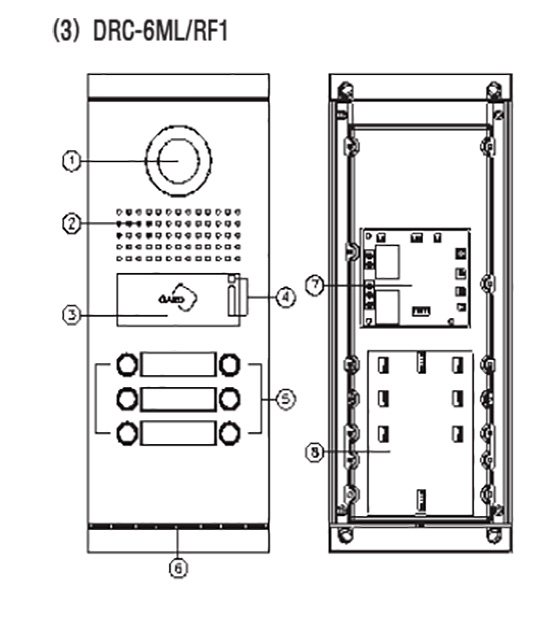

1. Camera
2. Speaker
3. 125Hz or 13.56Mnz RF reader
4. CDS sensor $ LED light
5. Household call button
6. Microphone

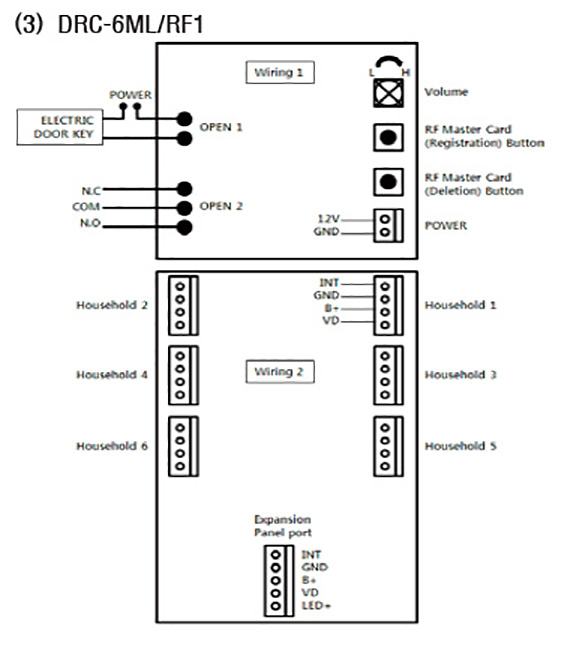

7. Wiring 1 (Refer to 3. Wiring)
8. Wiring 2 (Refer to 3. Wiring)

18734-spec

Item	Multi Button Door Camera DRC-6ML
Model	18734
Power source	DC 12V/1A
Operation Temp.	-20? ~ +40?
Wiring	4 wires
Minimum Illumination	0.1Lux (up to 300mm)
Camera view angle	Horizontal : 75°/ Vertical : 55°
Distance	50m(0.65?)
Dimension(mm)	130(W) X 315(H) X 50(D)
