סוויץ´ 24 פורטים ג´יגה
• Apply to IEEE802.3?IEEE802.3u?IEEE802.3ab standard
• Ethernet port supports 10/100/1000M adaptive
• Support auto MDI/MDIX
• Panel indicators to monitor working status and help fault analysis
• One-key smart switch, supports VLAN, Default, Extend three modes
• Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
• Port 1-8 supports Qos data priority
• Support Loop alarm
|
Product |
Gigabit Ethernet Switch-24 Port |
|
Model |
18299 |
|
Power |

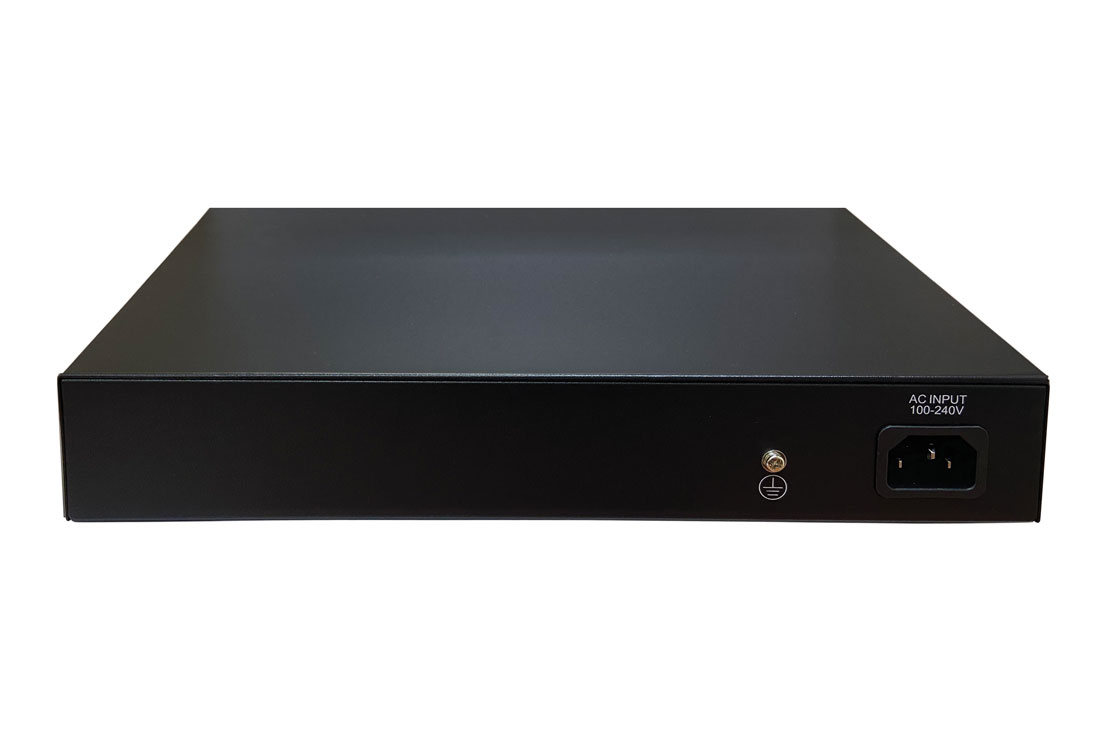

AC input (100-240V) |
|
Ethernet |
24*RJ45 10/100/1000Mbps Ports |
|
Performance |
|
|
Switching Capacity |
48Gbps |
|
Throughput |
35.7Mpps |
|
Packet Buffer |
4M |
|
MAC Address |
8K |
|
Jumbo Frame |
4K |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hour |
|
Standard |
|
|
Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|
Network Medium |
10Base-T: Cat3,4,5 or above UTP(?100m) 100Base-T: Cat5 or above UTP(?100m) 1000Base-TX: Cat5 or aboveUTP(?100m) |
|
Protection |
|
|
Security Certificae |
CE, FCC, RoHS |
|
Environment |
|
|
Working Environment |
Working Temperature: -10~50°C Storage Temperature:-40~70°C Working Humidity: 10%~90%,non-condensing Storage Temperature: 5%~90%,non-condensing Working Height: Maximum10,000 feet Storage heigh: Maximum 10,000 feet |
|
Indication |
|
|
LED Indicators |
PWR (Power indicator), Link (Network Link), LOOP (Loop alarm), 1000M |
|
DIP Switch |
VLAN:Port Isolation, 1-22 ports are isolated each other, all communicate with uplink port 23/24; Default:Default mode, Support loop alarm; Extend:Monitor Mode, 1-22 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 23 and port 24 as uplink port; |
|
Mechanical |
|
|
Structure Size |
Product Size: 270*180*45mm Package Size: 312*262*84mm Product Net-Weight: 1.1kg Product Gross-Weight: 1.6kg |
|
Packing Info |
MEAS: 540*435*332mm Packing Qty: 10 unit Packing weight: 17.5KG |
|
Power Voltage |
Power Input Voltage: AC 100-240 V |
|
Package List |
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair |
