סוויץ´ 24 פורטים
|
Product |

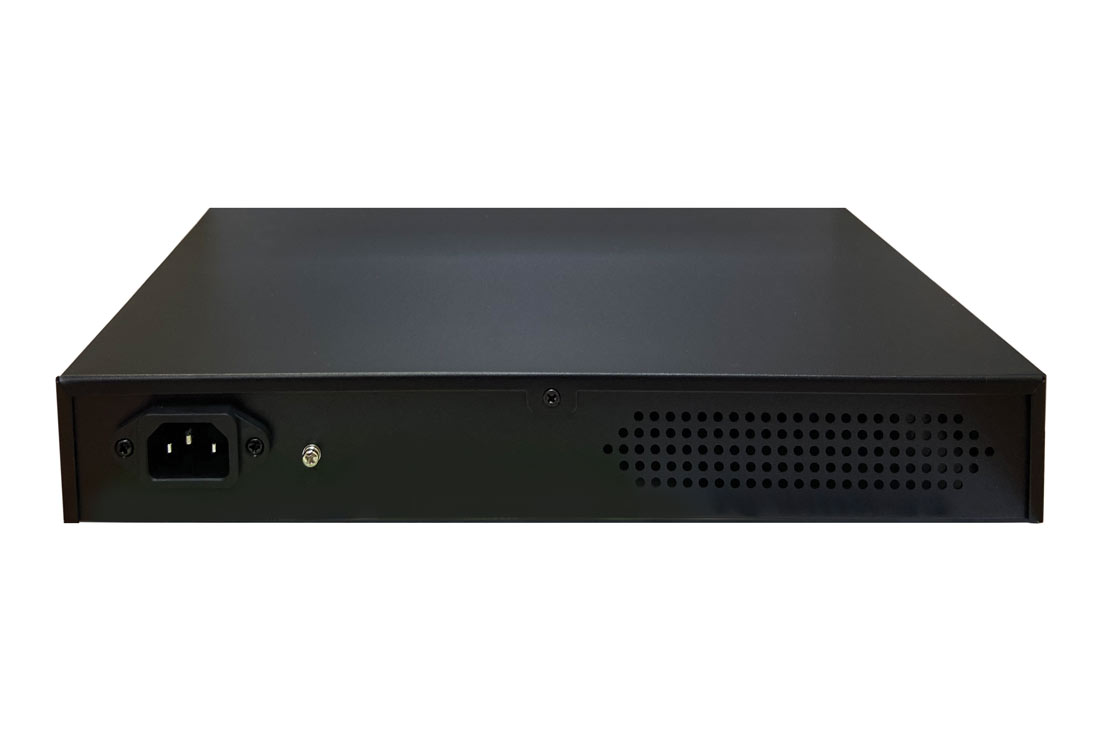

Ethernet Switch-24 Ports |
|
Model |
18297 |
|
Fixed Port |
24*10/100/Base-TX RJ45 port (Data) |
|
Function |
N:(standard normal) V:(port isolation) C:(Flow Control mode |
|
Network Protocol |
IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x IEEE 802.1q |
|
Port Specification |
10/100/BaseT(X) Auto |
|
Transmission Mode |
Store and Forward: (full wirespeed) |
|
Bandwidth |
4.8Gbps |
|
Packet Forwarding |
35.7Mpps Supports 10K jumbo frame transmission |
|
MAC Address |
8K |
|
Buffer |
4.1M |
|
Transmission Distance |
10BASE-T : Cat3,4,5 UTP(?250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) |
|
Watt |
Standby Power Consumption: ?15W |
|
LED Indicator |
PWR: Power LED 1-16: (Link LED=10/100M?1000M=Gigabit Link) |
|
Power Input |
Built-in Power AC: 100~240V 50-60Hz 1A |
|
Operating Temperature/Humidity |
-10~+55°C; 5%~90% RH Non coagulation |
|
Storage Temperature/Humidity |
-40~+75°C; 5%~95% RH Non coagulation |
|
Product size/Packing |
310mm*180mm*44mm |
|
N.W/G.W(kg) |
2.2kg/2.8kg |
|
Installation |
Rack |
|
Lightning protection level |
3KV 8/20us; IP30 |
|
Certificate |
CE FCC RoHS; |
