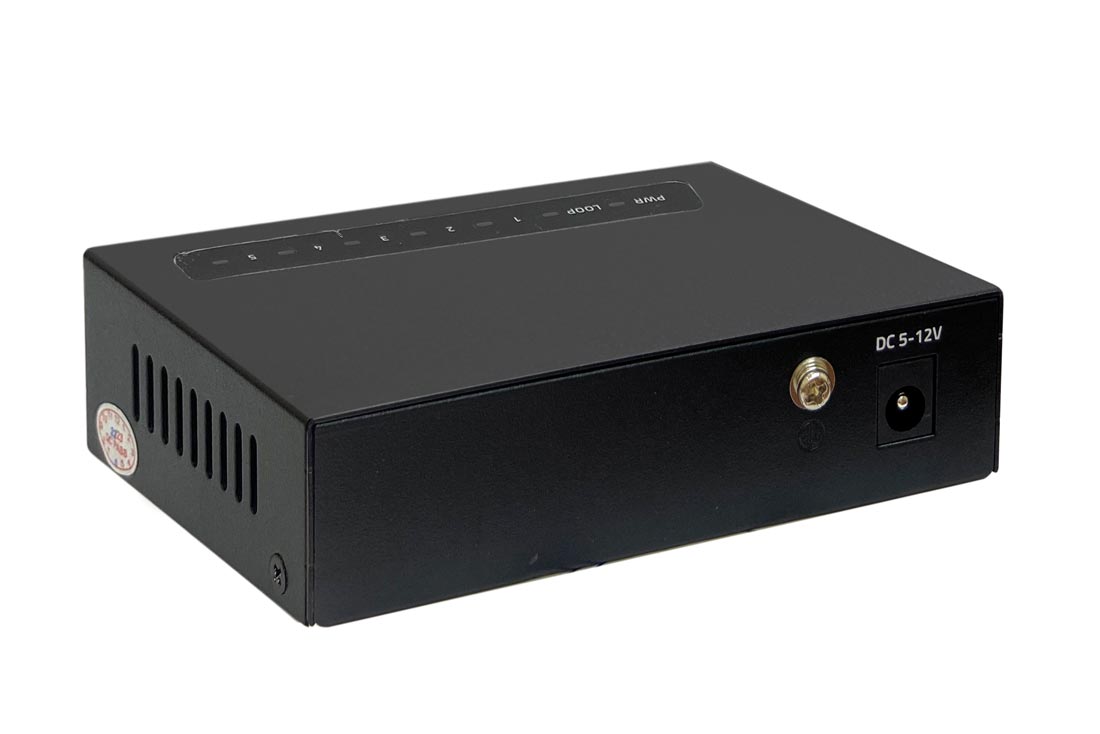

סוויץ´ 5 פורטים ג´יגה
• Apply to IEEE802.3, IEEE802.3u, IEEE802.3ab standard
• Ethernet port supports 10/100/1000M adaptive
• Support auto MDI/MDIX
• Panel indicators to monitor working status and help fault analysis
• One-key smart switch, supports VLAN, Default, Extend three modes
• Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
• Support loop alarm
|
Product |
Gigabit Ethernet Switch-5 Port |
|
Model |
18291 |
|
Power |
DC 5V |
|
Ethernet |
5*RJ45 10/100/1000Mbps Ports |
|
Performance |
|
|
Switching Capacity |
10Gbps |
|
Throughput |
7.44Mpps |
|
Packet Buffer |
1M |
|
MAC Address |
1K |
|
Jumbo Frame |
2K |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hour |
|
Standard |
|
|
Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|
Network Medium |
10Base-T : Cat3,4,5 or above UTP(100m) 100Base-TX : Cat5 or above UTP(100m) 1000Base-TX : Cat5 or aboveUTP(100m) |
|
Protection |
|
|
Security Certificae |
CE, FCC, RoHS |
|
Environment |
|
|
Working Environment |
Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height:Maximum10,000 feet Storage heigh:Maximum 10,000 feet |
|
Indication |
|
|
LED Indicators |
PWR(Power indicator),LOOP(Loop alarm),Link(Network Link) |
|
DIP Switch |
VLAN:Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5; Default:Default mode, all ports communicate with each other; Extend:Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 5 as uplink port; |
|
Mechanical |
|
|
Structure Size |
Product Size:100*70*26mm Package Size:175*120*63mm Product Net-Weight:0.2kg Product Gross-Weight:0.4kg |
|
Packing Info |
MEAS:505*320*400mm Packing Qty:40 unit Packing weight:17KG |
|
Power Voltage |
Power Input Voltage :AC 100-240V Switch Input Voltage::DC 5V |
|
Package List |
Switch 1 pcs, Power Apadter 1 pcs, User manual 1 pc, Warranty card 1 pc |
