סוויץ´ 5 פורטים

18289 :מק"ט


הורדת מפרט טכני
• 5*100M Ethernet port with auto-negotiation function
• Support 100M speed rate ,MDI/MDIX
• Support IEEE802.3x Flow control and back pressure control
• Each port has the complete LED Indicator light
• Support IEEE802.1d Spanning Tree
• Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed
• Support high performance QoS function on each port
• Support multicast to avoid network congestion
• Support 5-16V voltage input
• Support 4K lightning protection of each port
• Require no configuration and will instantly operate as soon as you power it up
• Use low-power consumption chips,only 2.5W in full load conditions

Product

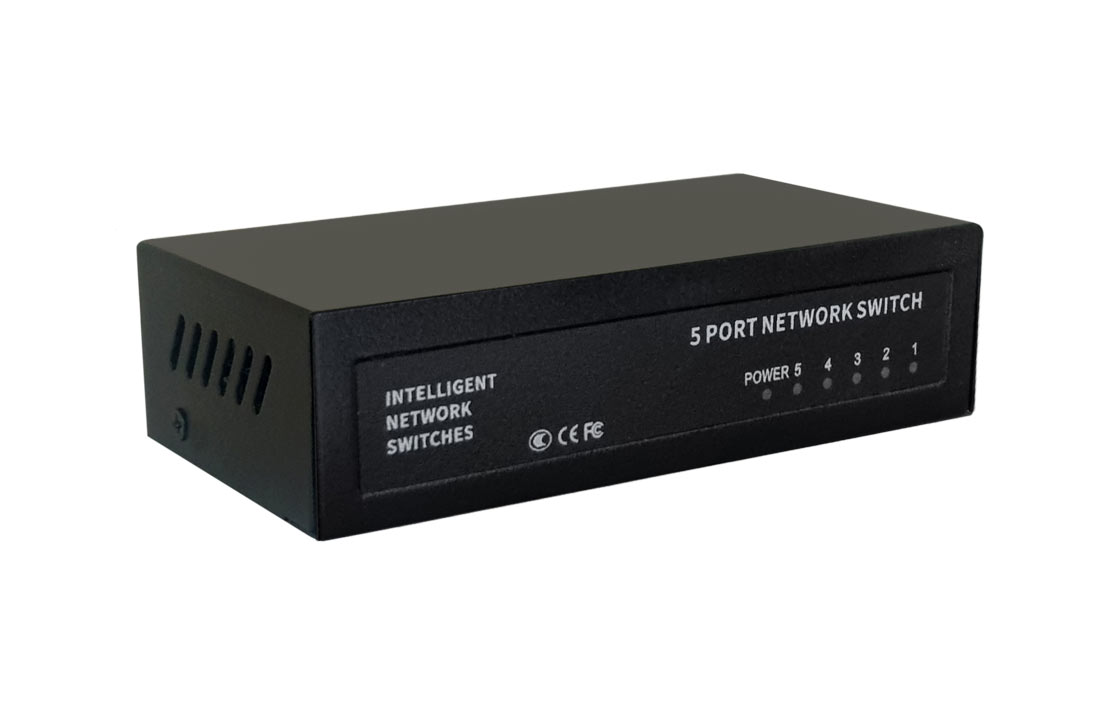

Ethernet Switch-5 Ports

Model

18289

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree

Certifications

CCC, CE

Ethernet Port

Connector: RJ45

Data Rate: 10/100M

Distance: 100m

UTP Type: UTP-5E or higher level

Performance

Processing Type: Store and Forward

Transmission Mode: half/full-duplex with auto-negotiation function

MAC Table Size: 1K

Buffer Space: 448K

Back bandwidth: 1G

Time Delay: <150cm

Power

Power type: external power supply

Input Voltage: AC100V~240V 50/60Hz

Connector: DC Socket

Working Voltage: 5V

Power Consumption: 1.8W~4W

Environment

Storage Temperature: -40~70C

Operating Temperature: -10~55C

Relative Humidity: 5-90% ( no condensation)

Physical Characteristics

Dimension: 100×52×28mm

Weight: 0.30kg

Color: Metal, Black
