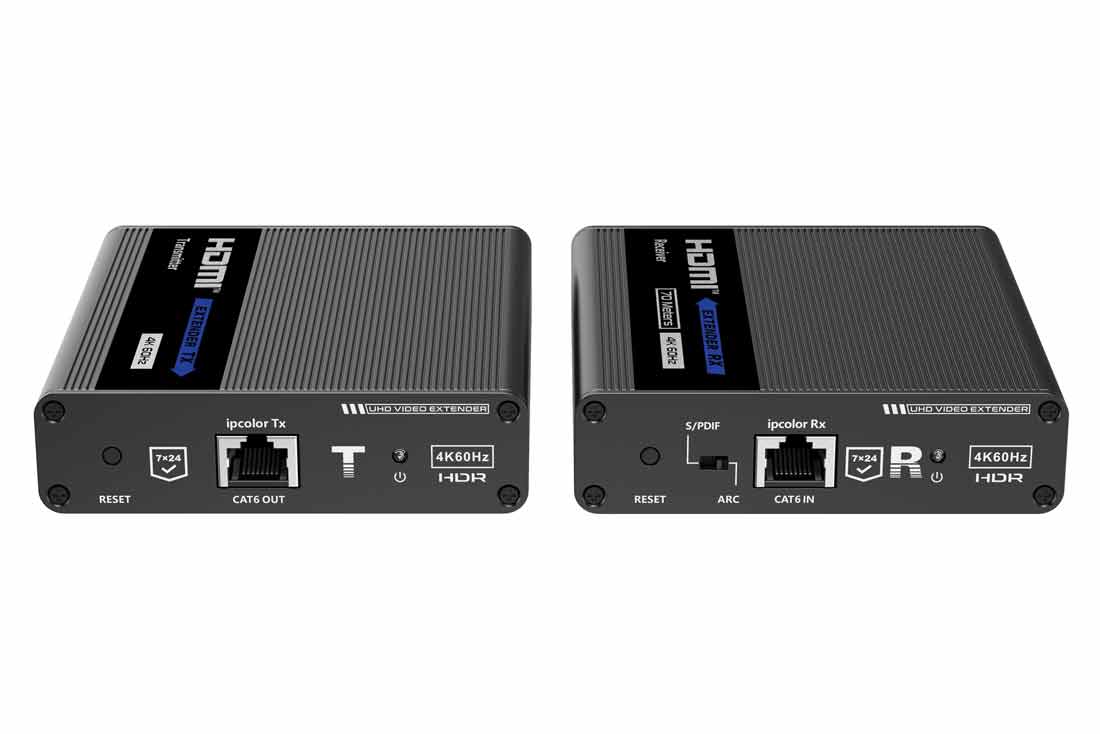

מרחיק HDMI תומך 4K ל70 מטר PoE

18133 :מק"ט

מרחיק (משדר מקלט) HDMI למרחק עד 70 מטר
המקלט תומך בקבלת הספק דרך כבל הרשת PoE
תומך ברזולוציה 4K בתדירות 60Hz
תומך HDR = High Dynamic Range and Dolby Audio
תומך HDMI 2.0 / HDCP 2.2
תומך 4:4:4 18Gbps
תומך ARC = Audio Return Channel
תומך העברת שידור IR דו כיווני
תומך CE/FCC/ROHS
ללא דילאיי – Zero Latency
יציאת HDMI OUT במשדר למסך נוסף (LOOP)
יציאת שמע אופטי S/PDIF

הורדת מפרט טכני

• Zero latency transmission
• Support 4K@60Hz (4:4:4/4:4:2) and 18Gbps bandwidth
• 70m transmission distance when using CAT6/6N7, 40m transmission distance when using CAT5e
• Innovate cascade design
• Support HDMI ARC
• Support bi-directional IR pass back control
• Support HDMI 2.0 and compatible with HDCP 2.2
• Support HOR and Dolby audio
• The receiver can extract the digital audio from the transmitter through the S/PDIF port
• The receiver can be powered by the transmitter through a network cable and can adapt to
different resolution screen
• The transmitter supports one HDMI loop out
• Industrial grade design: lightning protection, surge protection and ESD protection
• Save more than 50% power consumption than the traditional ones
• Support CE/FCC/RoHS certification standards

Product	HDMI Extender
Technical	Transmitter		Receiver
Model	18133
Transmission meduim	HDCP2.2, compatible HDCP1.4
Transmission distance	CAT6/CAT6A/CAT7
Video bandwidth	CAT6/6A/7 Transmission 70 meters
Video support	18Gbps
Audio support	480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz, 720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz,4096x2160@24/25Hz, 1280x960,1280x800,1280x768,1680x1050, 1360x768,1366x768,1600x900,1024x768,800x600
HDR10	support
POC support	support
HDMI Loop-out	support
ARC and S/PDIF out	support
EDID through	support
IR passback	support
Input TMDS signal	0.7~1.2Vp-p(TMDS)
Input DDC signal	5Vp-p(TTL)
Input	HDMI×1,DC2.1×1	DC2.1×1, RJ45×1, 3.5mm jack ×1(IR)
Output	HDMI×1, RJ45 ×1, 3.5mm jack ×1(IR)	HDMI×1, RJ45×1, Opticalx1
HDMI connector	Type A 19 Pins,Female
Network cable standard	CAT6/CAT6A/CAT7 , follow IEEE-5688 standard
Mechanical	Transmitter		Receiver
Housing	Aluminium alloy material+crystal panel
Dimensions(L×W×H mm)	106.0(L) x 99.0(W) x 26.2(H)mm
Net weight	210g			210g
Power supply	12V/2A
Power consumption	4W
Operation temperaure	-20~60C
Storage temperature	-30~70C
Relative humidity	0~90%(no condensation)
