מרחיק HDMI ברזולוציה 4K עד 60 מטר
מרחיק HDMI ברזולוציה 4K עד 60 מטר
18156 :מק"ט
מרחיק HDMI על גבי כבל רשת ברזולוציה 4Kx2K למרחק עד 60 מטר.
המארז כולל:

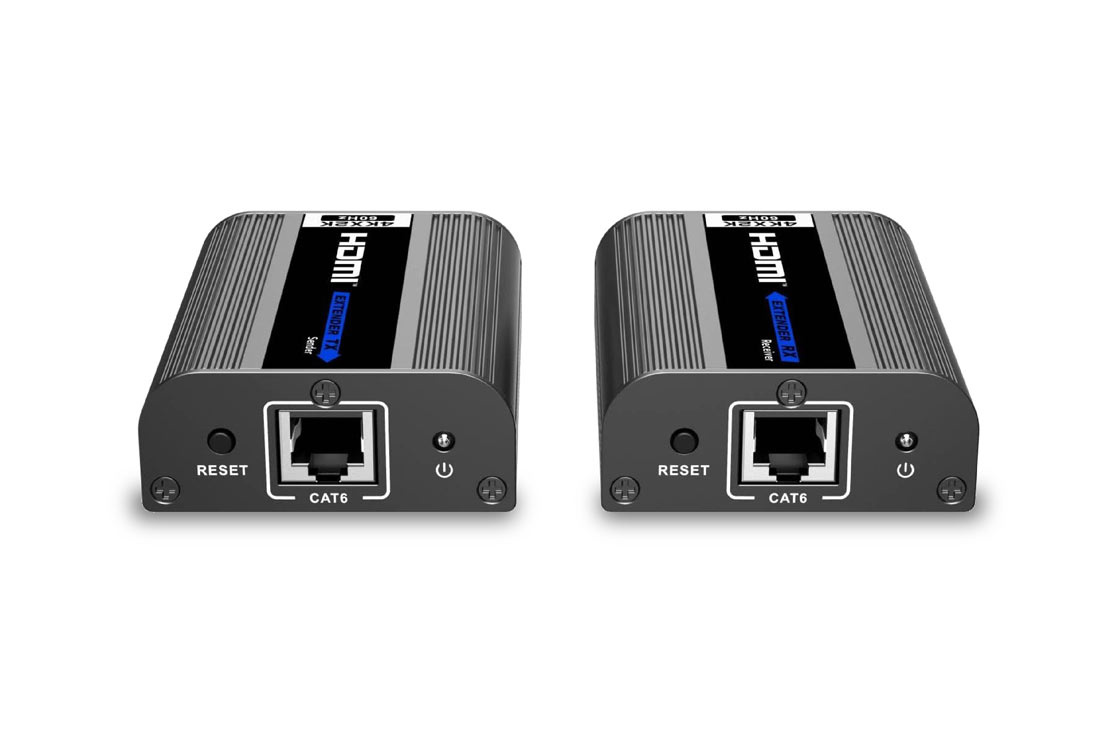

משדר + מקלט
2 ספקים 5V
2 עיניות IR
• Support HDMI2.0, compatible with HDCP2.2
• Highest resolution support 4Kx2K@60Hz

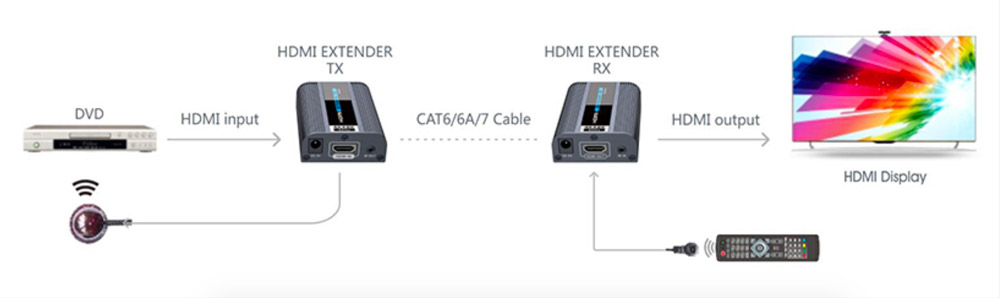

• Transmission over single CAT6/6A/7
• Support IR passback function (IR range support 20~60KHz )

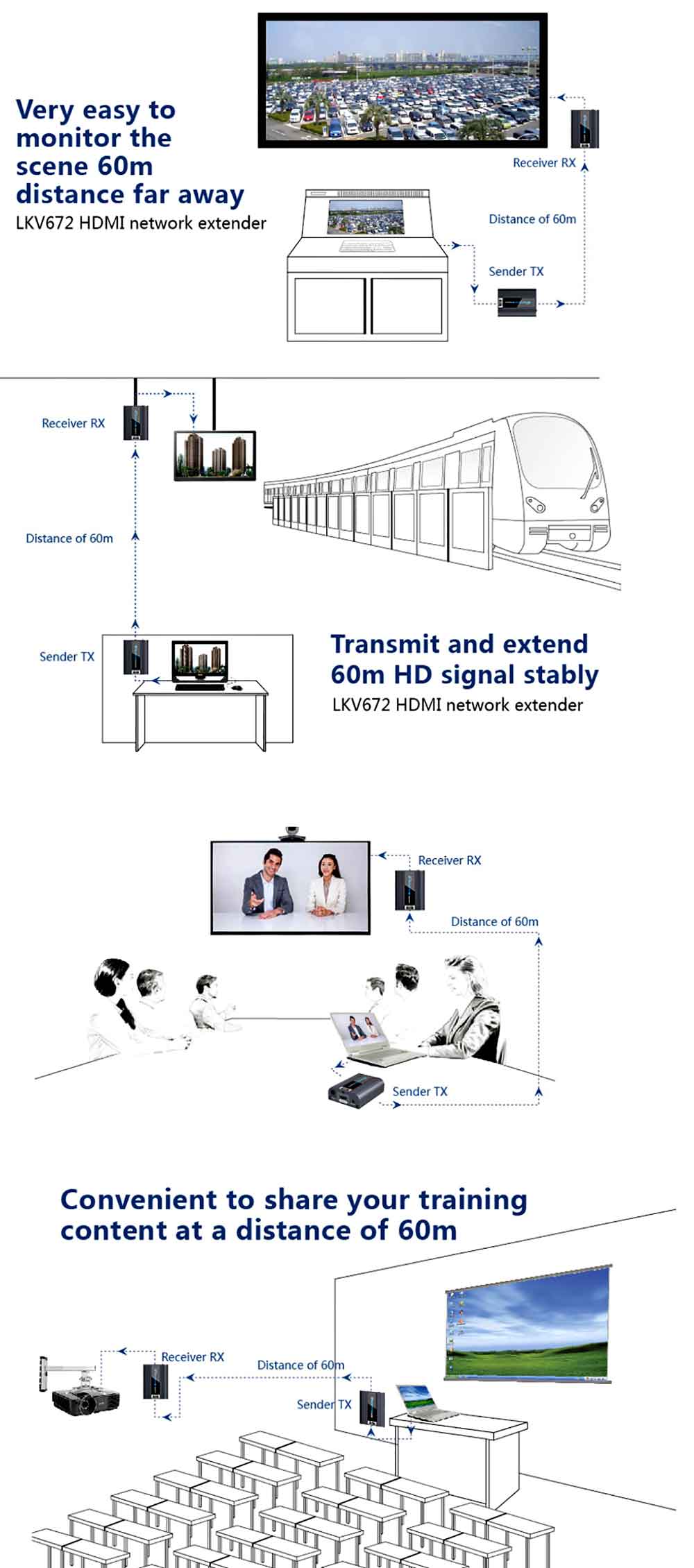

• Support distance up to 60m when 4K@30Hz, and 30m when 4K@60Hz
• Plug and play
• Metal casing, stable and durable
• Highest resolution support 4Kx2K@60Hz
• Transmission over single CAT6/6A/7
• Support IR passback function (IR range support 20~60KHz )
• Support distance up to 60m when 4K@30Hz, and 30m when 4K@60Hz
• Plug and play
• Metal casing, stable and durable
Specification | Items |
DC5V/1A | Voltage/Current |
TX: 2.5W RX:<3W | Power consumption |
HDMI2.0 | HDMI compliance |
HDCP2.2 | HDCP compliance |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz 720p@50/60Hz,1080i@50/60Hz 1080p@50/60Hz, 4Kx2K 24/25/30/60/Hz |
HDMI resolution |
PCM | Supports audio formats |
10.2Gbps | Maximum transfer rate |
0.5~1.5Vp-p(TMDS9) | Input and output TMDS signal |
5Vp-p(TTL) | Input and output DDC signal |
?8m(AWG24) | Input cable length |
?8m(AWG24) | Output cable length |
1a Contact discharge level 3
1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 |
Electrostatic protection of the whole machine |
0~50C | Working temperature |
-10~70C | Storage temperature |
0~90% | (Humidity (no condensation |
77.49(L) x 56.15(W) x 22.66(H)mm | Dimension |
Aluminium alloy material + crystal panel | Material |
Grit blast | Treatment process |
Black | Color |
TX:80g, RX:80g | Weight |
>30000 Hours | (Mean time between failures (MTBF |
