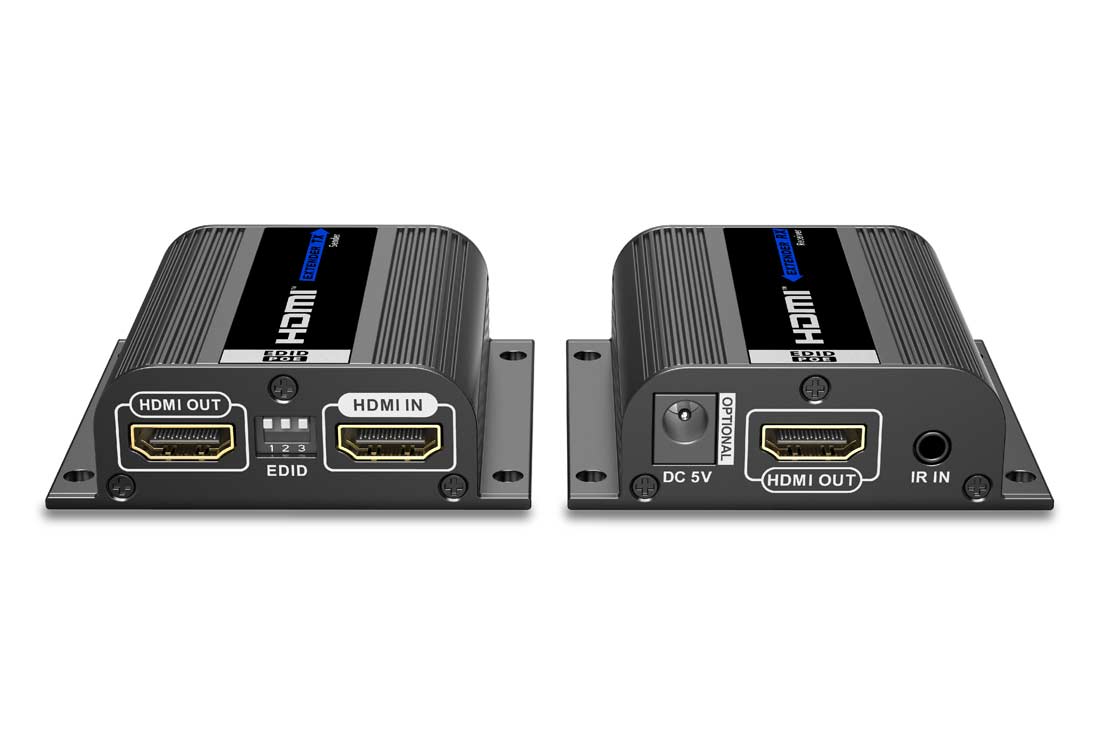

מרחיק HDMI עד 50 מטר 1080p@60Hz כולל IR + PoE

18124E :מק"ט

מרחיק HDMI על גבי כבל רשת ברזולוציה 1080P FULL HD למרחק עד 50 מטר.
תומך בפרוטוקול EDID
תומך PoE (הזנת מתח בצד של המשדר בלבד)
תומך LOOP OUT - יציאה HDMI נוספת במשדר למסך מקומי קרוב.
המארז כולל:
משדר + מקלט
1 ספק 5V
2 עיניות IR

הורדת מפרט טכני

• Uncompressed and zero latency.

• Plug and play, without installation.

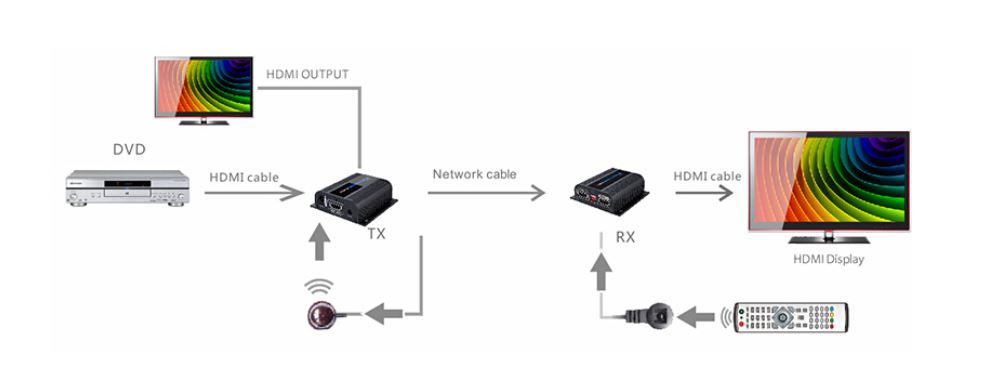

• Transmitter support one HDMI Loop-out.

• Use CAT6/6A/7 for long distance transmission.

• Support resolution is up to full HD 1080p@60Hz.

• Support POE to power the receiver from transmitter.

• Transmission distance up to SO meters via CAT6 cable.

• With EDID switch for setting a very needed HDMI signal format

• Support IR passback for remote control source device from receiver site easily.

Product	HDMI Extender
Model	18124E
Technical	Transmitter-TX		Receiver-RX
HDMI compliance	1.4a
HDCP compliance	1.2a
Video bandwidth	225MHz(10.2Gbps)
Video support	480I/P, 576I/P, 720P, 1080I/P, 3D
Audio support	PCM, AC3, DTS
Input TMDS signal	1.2Vp-p
Input DDC signal	5V
ESD protection	8KV
EDID support	yes
loop-out on TX	one HDMI loop-out on TX
POE support	RX powered by TX
IR passback	yes
IR frequance Range( KHz)	20-60KHz

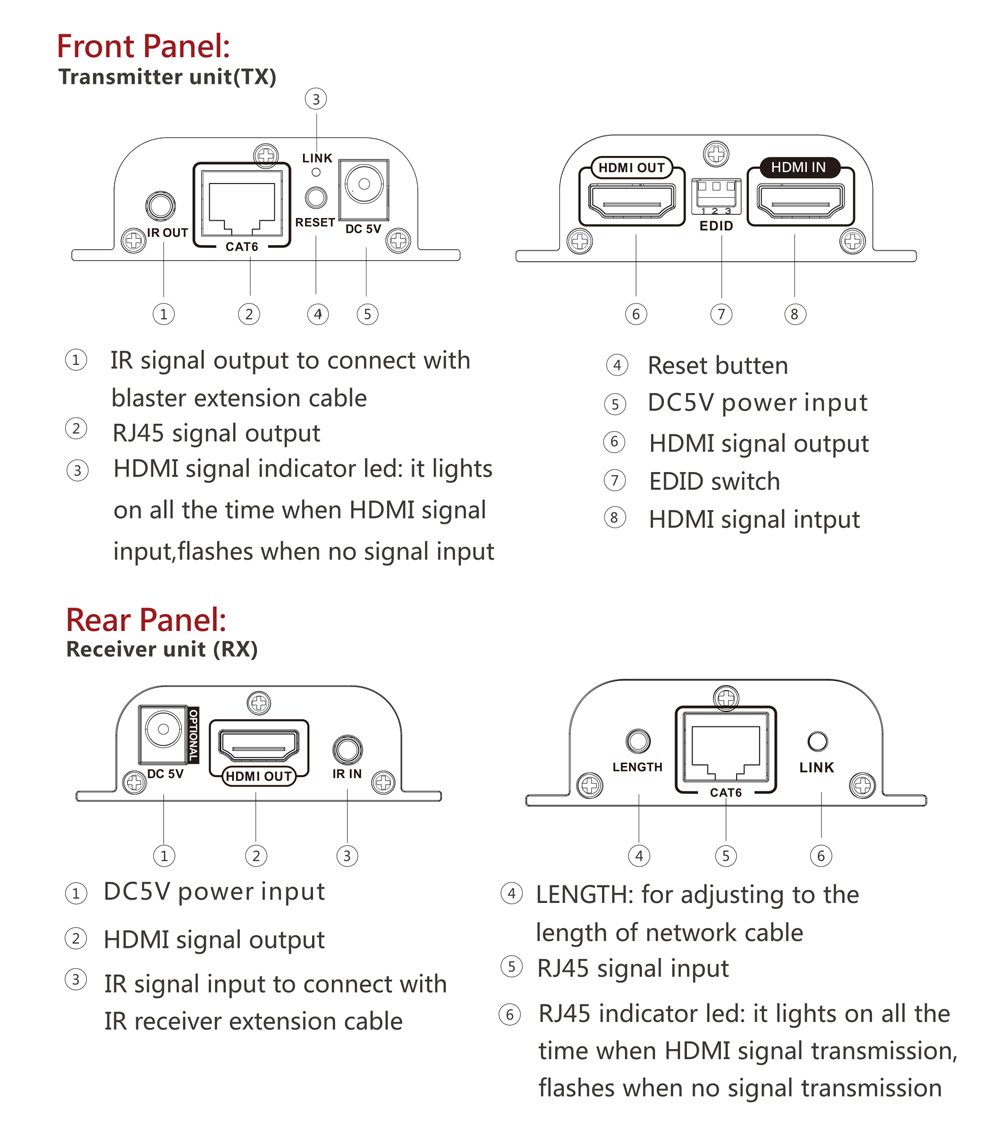

Input	1×HDMI	1×RJ45, 1×3.5mm(IR)
Output	1xHDMI, 1×RJ45, 1×3.5mm(IR)	1×HDMI
HDMI conector	Type A, Female, 19-pin
RJ-45 connector	RJ-45
Mechanical	Transmitter-TX	Receiver-RX
Housing	Metal enclosure
Dimensions(L×W×H mm)	71.6×66.6×22.6mm		71.6×66.6×22.6mm
Net weight	83g	83g
Fixedness	wall-mounting case with screws
Power supply	5V2A
Consumption	<3W	<3W
Operation temperaure	0~40C
Storage temperature	—20~70C
Relative humidity	0~95%(non-condensing)
