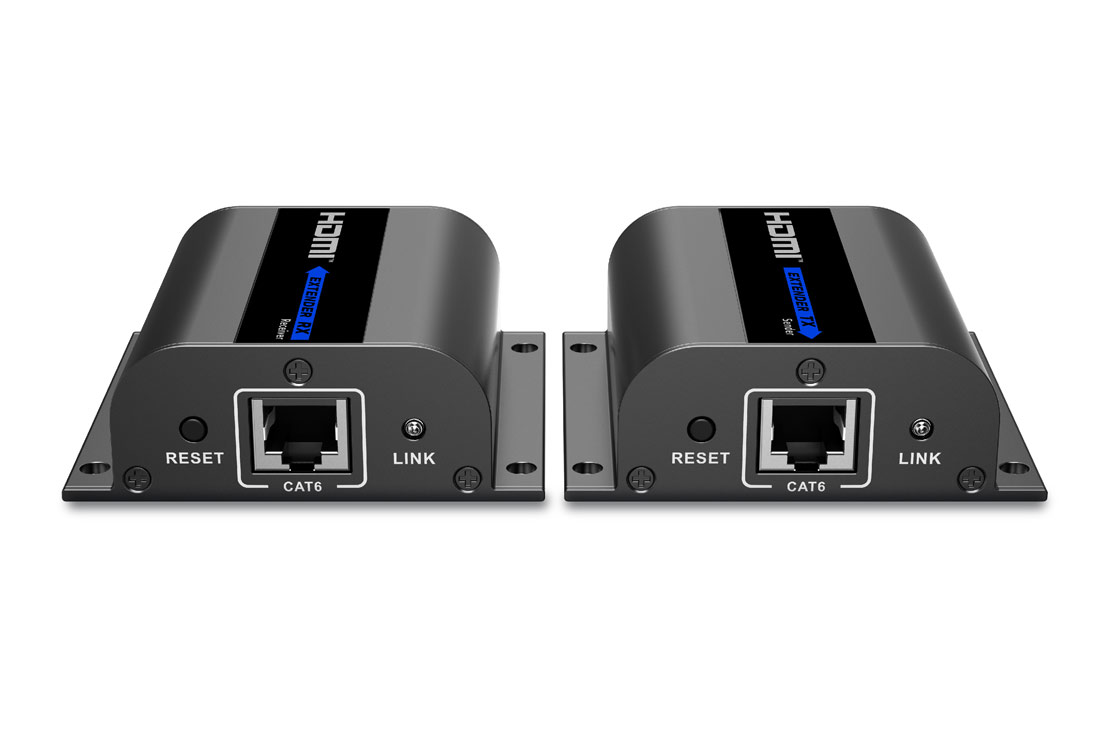

מרחיק HDMI עד 50 מטר 1080p@60Hz כולל IR

18124 :מק"ט

מרחיק HDMI על גבי כבל רשת ברזולוציה 1080P FULL HD למרחק עד 50 מטר.
המארז כולל:
משדר + מקלט
2 ספקים 5V
2 עיניות IR

הורדת מפרט טכני

• Zero latency.

• Support up to 4K@30Hz resolution.

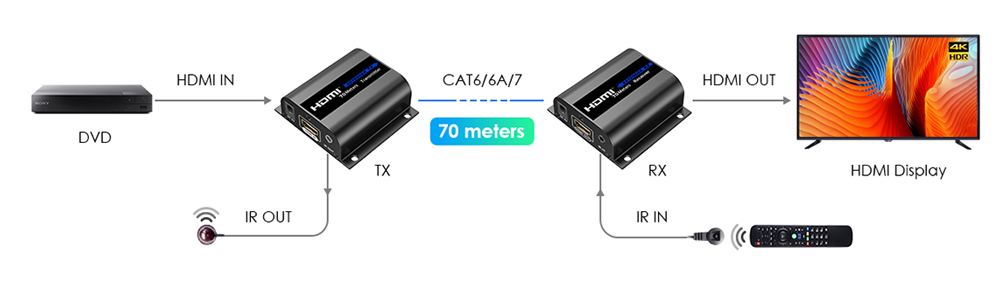

• Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70meters, 4K@30Hz
transmission distance is up to 40 meters.

• Support IR pass-back function (20 ~ 60KHz).

• Support HDR10.

• Support EDID passthrough.

• Audio formats supported: PCM, LPCM, DTS HD, DTS Audio

• Automatically adjusts parameters to match different network cables and achieve the best display
performance.

• Lightning Protection, Surge Protection, ESD Protection.

18124-spec

Product	HDMI Extender
Model	18124
Technical	Transmitter-TX	Receiver-RX
HDMI compliance	1.3
HDCP compliance	1.3
Video bandwidth	225MHz(10.2Gbps)
Video support	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@ 50/60Hz, 1080p@50/60Hz; 3D
Audio support	PCM, AC3, DTS
InputTMDS signal	1.2Vp-p
loop-out on TX	No
IR passback	yes
IR frequance Range (KHz)	20-60KHz

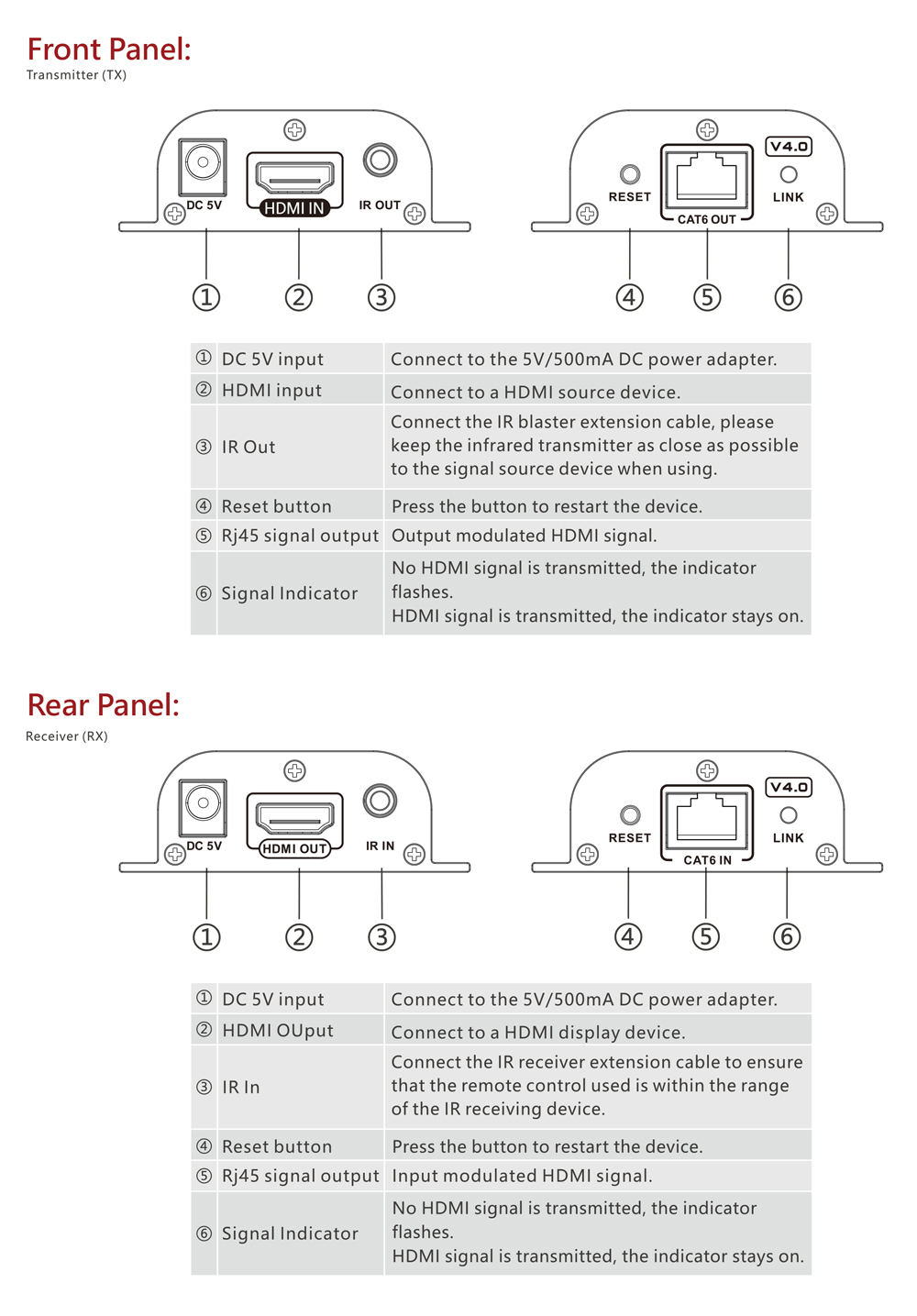

Input	1×HDMI	1×RJ45, 1×3.5mm(IR)
Output	1×RJ45, 1×3.5mm(IR)	1×HDMI
HDMI conector	Type A, Female, 19-pin
RJ-45 connector	RJ-45
Mechanical	Transmitter-TX	Receiver-RX
Housing	Metal enclosure
Dimensions(L×W×H mm)	71.6×66.6×24.8mm	71.6×66.6×24.8mm
Net weight	83g	80.6g
Fixedness	wall-mounting case with screws
Power supply	5V1A
Consumption	<2W	<2W
Operation temperaure	0~60C
Storage temperature	—20~70C
Relative humidity	0~95%(non-condensing)
