מרחיק USB פאסיבי

10034 :מק"ט

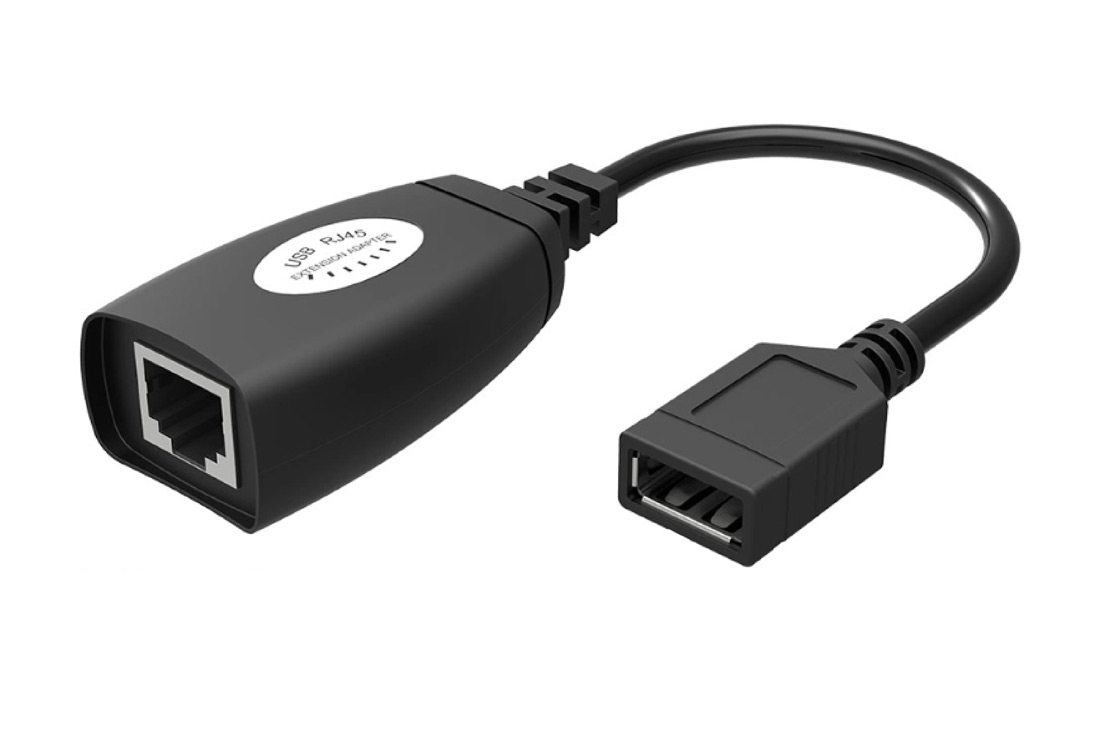

מרחיק USB פאסיבי ללא ספק כח ע"ג כבל רשת CAT-5/6 עד מרחק 45 מ´, מגיע משדר מקלט באריזה.

הורדת מפרט טכני

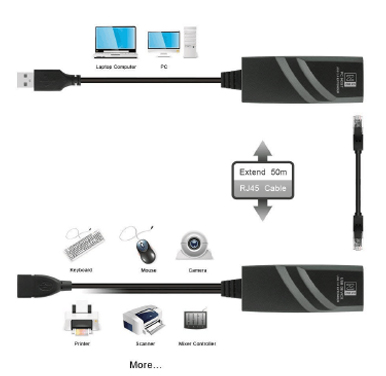

• Extend USB 2.0 signaling over CAT5 or LAN cable to a remote USB peripheral.

• Gives you the option to power it locally or remotely. Transmits power over the UTP cable.

• Works with USB 1.1 and USB 2.0 hosts.

• Compatible with USB devices operating at speeds up to 480 Mbps.

• Supports all major operating systems: Windows®, Mac OS X®, and Linux®.

• Plug and play. No software drivers to load on a host computer.

• Transmitter and receiver units featuring mounting slots on their sides.

10034-spec

Items	USB2.0 Extender Cable
Model	10034
Interface type	USB AM. USB AF, RJ45 port USB-RJ45
Transmission Rate	Support USB(12Mb/sor lower speed1.5Mb/s USB 9600/11520
Cable length	100±5MM
Material	ABS/PVC. ROHS
DC power	DC500V/10M?
Power supply	USB/DC5V±0.3V USB A Male
Signal out from LAN	USB (5VDC+D+/D-) Transmitter
Signal in from LAN	USB (5VDC+D+/D-) Receiver
Twisted wireing	As EIA/TIA-568B Standard T568B 1:1
Impendence	10-5ohm/100m for LAN
Interface model	Support USB1.1/2.0
