מיקרופון 6 אזורי שליטה חיבור CAT PoE עד 600 מטר
![מיקרופון 6 אזורי שליטה חיבור CAT PoE עד 600 מטר](https://www.copa.co.il/userfiles/image/catalog/16689-web.jpg)
![מיקרופון אזורים](https://www.copa.co.il/userfiles/image/catalog/thumbnails/16689-web2.jpg)
מיקרופון 6 אזורי שליטה חיבור CAT PoE עד 600 מטר
16689 :מק"ט

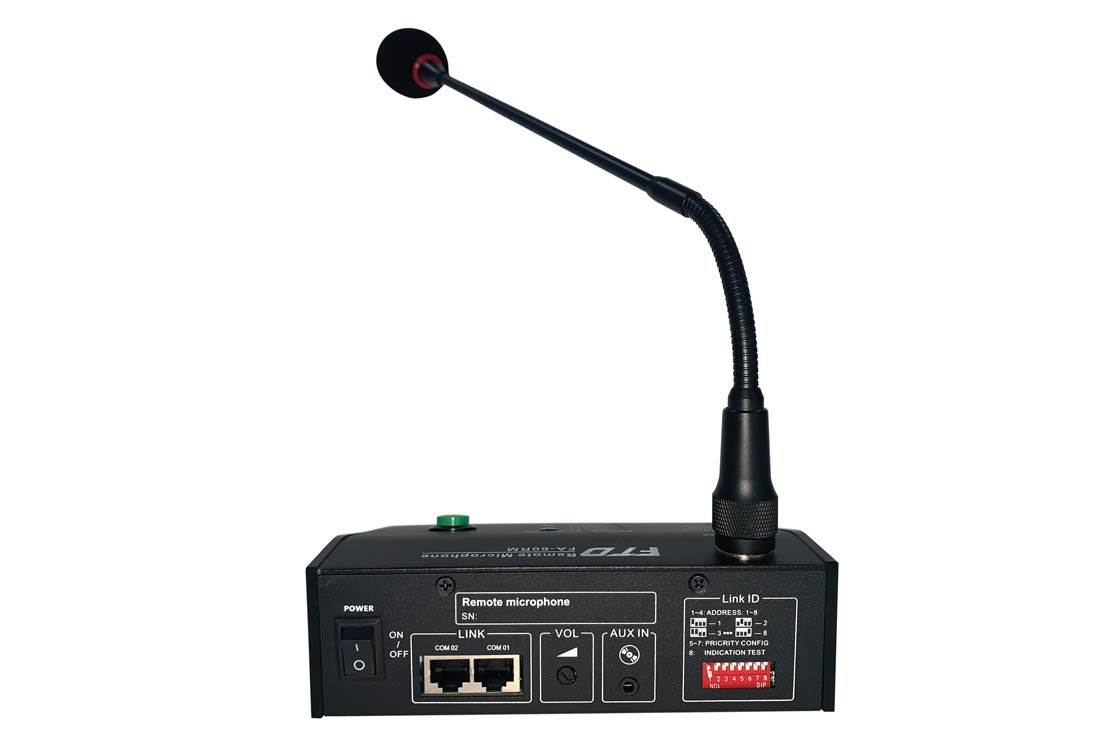

מיקרופון שולחני 6 אזורים עם גונג עד 600 מטר מתאים למגבר 16686/7/8 חיבור CAT ניתן לשרשור עד 8 מיקרופונים.
כניסה ויציאה RJ45 לחיבור למגבר ויציאה למיקרופון הבא.
כולל כפתור ON/OFF + ווסת עוצמה.
המיקרופון מכיל 6 לחצני הפעלה על פי אזורים ולחצן כל האזורים "ALL".
מתח הזנה DC24V.

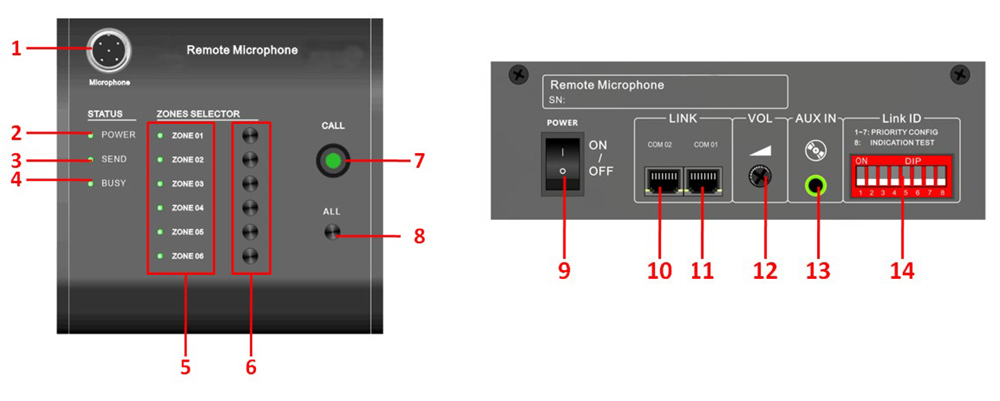

Front Panel & Rear Panel:
![מיקרופון אזורים](/editor/assets/16689-porp.jpg)
1. Gooseneck microphone connector.
2. Power indicator.
3. Send or working indicator.
4. Busy indicator.
5. Speaker Zone 1-6 indicators.
6. Speaker Zone 1-6 selectors.
7. Call or talk button.
8. All speaker zone 1-6 selector.
9. Power switch.
10. RJ45 port to cascade another remote paging microphone.
11. RJ45 port to communicate with series Amplifier.
12. Microphone volume control.
13. Aux input.
14. Priority dipswitch.
![מיקרופון אזורים](/editor/assets/16689-porp.jpg)
1. Gooseneck microphone connector.
2. Power indicator.
3. Send or working indicator.
4. Busy indicator.
5. Speaker Zone 1-6 indicators.
6. Speaker Zone 1-6 selectors.
7. Call or talk button.
8. All speaker zone 1-6 selector.
9. Power switch.
10. RJ45 port to cascade another remote paging microphone.
11. RJ45 port to communicate with series Amplifier.
12. Microphone volume control.
13. Aux input.
14. Priority dipswitch.
• RS485 remote paging microphone.
• Each microphone of 6 zone capacity.
• System support 8 remote microphones of loop connection.
• 6 zone selection buttons and all zone button.
• Two RJ45 ports for connection with 16686/7/8 ampliifer and next remote microphone.
• Support PPT and normal paging two modes.
• CAT5 or CAT6 cable communication up to 600 meters.
• POE power supply from 16686/7/8 controller..
• Each microphone of 6 zone capacity.
• System support 8 remote microphones of loop connection.
• 6 zone selection buttons and all zone button.
• Two RJ45 ports for connection with 16686/7/8 ampliifer and next remote microphone.
• Support PPT and normal paging two modes.
• CAT5 or CAT6 cable communication up to 600 meters.
• POE power supply from 16686/7/8 controller..
Item |
Remote Microphon 6 Zone |
Model |
16689 |
Power Consumption |
3W |
Zone Capacity |
6 Zones |
System Capacity |
8 Remote microphones |
Line Inputs |
350mV, 10k Omega |
Mic Input |
5mV, 600 Omega |
Frequency Response |
80Hz~16kHz |
THD |
1% at RMS,1KHz |
S/N Ratio |
>70dB |
Operating Temp |
-20 to +70 |
Power Supply |
DC24V, ±20% |
Humidity |
<95% no condensation |
Dimension |
256(W)×149(H)×52(D) mm |
Weight |
1.5kg |
