CIOT-D20P - DOOR CAMERA


CIOT-D20P - DOOR CAMERA

18873 :מק"ט

אתר היצרן הורדת מפרט טכני
• 2-megapixel sensor SONY IMX307
• House call and talk
• Smart Doorlock connectable
• Operation temperature from -10°C ~ + 50°C
• Compression H.264 HP/MP/BP
• Comply with ONVIF Profile S specifications
• Vandal proof design
• Link with a smartphone
• Waterproof class IP 67
• IR LED , range up to 10 m
• Day/Night mode & electromechanical IR filter
• Support two-way SIP channel

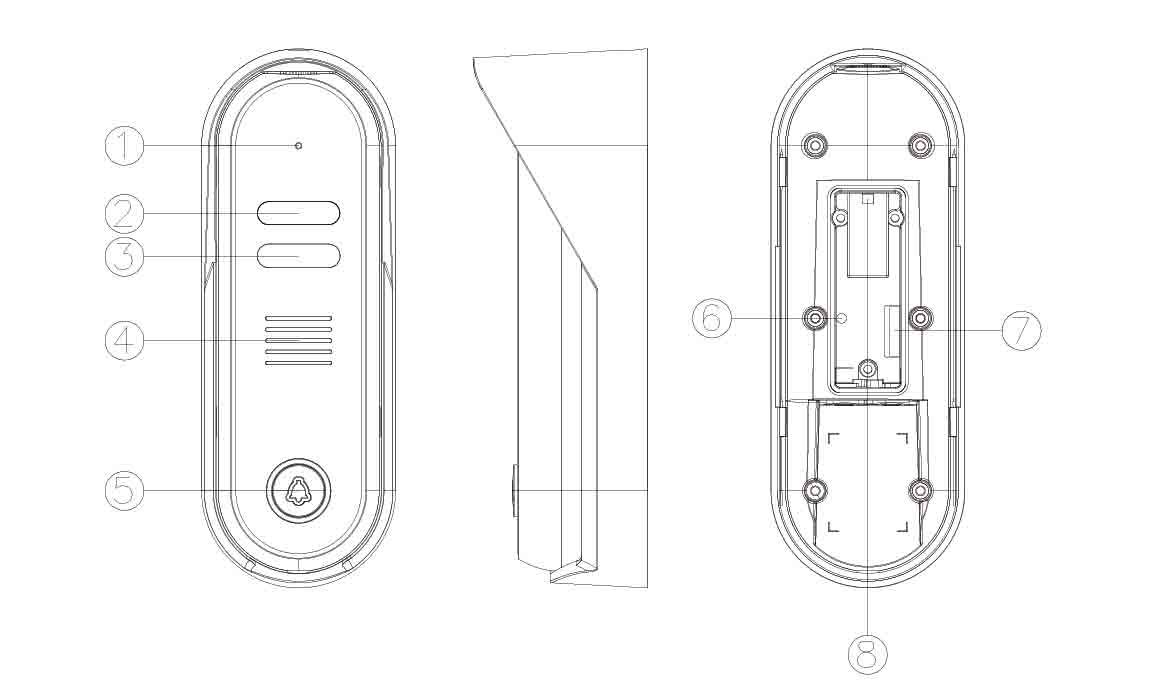

 No.

 Contents

 1

 MIC

 2

 LED&CDS

 3

 Camera

 4

 Speaker

 5

 Call button

 6

 Reset button (Press the button for 5 sec, You can initialize status of Camera

 7

 Contact Port (Door Release)

 8

 PoE

 Item

 CIOT-D20P - DOOR CAMERA

 Model

 18873

 Power source

 INPUT: PoE DC 36V ~ 54V

 Camera

 2M pixel

 Backlight Compensation

 BLC and HLC

 Operation Temp.

 -10°C~40°C

 Transmission

 Audio : VoIP(SIP Standard) Video : RTP over TCP/UDP

 Protection class

 IP67

 Resolution

 Main stream 2MP ~ D1 Sub stream D1 ~ CIF

 Wavelength

 870nm

 Audio Codec

 G.711 ulaw/alaw

 Noise Reduction

 2DNR and 3DNR

 Power consumption

 Standby :3W , Max :10W

 Viewing angle

 Horizontal 90°

 Video

 H.264 HP/MP/BP

 Wiring

 UTP

 Dimension(mm)

 59(W) X 164(H) X 42(D)

 Design(Body Material)

 Vandal proof housing(Metal)

 Visible Light Range

 Up to 10m

 Control

 Auto on/off, on/off time

 Network Protocols

 TCP / IP, IPv4, HTTP, RTP, RTSP, NTP, ICMP, SIP

 Sensitivity

 0.01 lux (color) / 0.001 lux (black and white)
