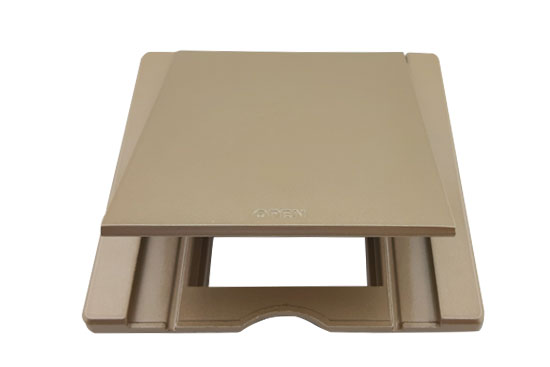

קופסת חיבורים פופ-אפ אלומיניום לקיר 3 מקום בצבע ברונזה
קופסת חיבורים פופ-אפ אלומיניום לקיר 3 מקום בצבע ברונזה
14157 :מק"ט
הפנל עשוי אבץ עמיד לשריטות ומתאים עד 3 מודולים.
ניתן לקבל את פנל עם חיבורים על פי דרישה.
התקנה פשוטה ומהירה בקיר למראה נקי ואסטטי ולשמירת שקעי החיבורים עם מכסה.
• Dispose of trash in bottom box and prevent dirt and debris from entering inside.
• The sealing ring is closely attached to the smooth surface to prevent water leakage.
• Prevent from alkaline corrosion and humidity.
• When installing, pay attention to the opening direction, the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.
• When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).
• This product is suitable for dry surface treatment, avoid water flush and immersion, and ensure its insulation
• Avoid acid alkaline solution flushing, avoid scratch of transparent protective paint, ensure corrosion resistance.
• The sealing ring is closely attached to the smooth surface to prevent water leakage.
• Prevent from alkaline corrosion and humidity.
• When installing, pay attention to the opening direction, the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.
• When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).
• This product is suitable for dry surface treatment, avoid water flush and immersion, and ensure its insulation
• Avoid acid alkaline solution flushing, avoid scratch of transparent protective paint, ensure corrosion resistance.
| • Transit areas and parking • Hotels, hospitality and wellness • Health, sport and leisure • Art and culture • Companies • Housing • Fitness room • Restort • Exhibition Hall • Museums |
• Office and education • Industry and Engineering • Presentation and retail • Orientation and safety • Hospitals • Restaurants • Airport • Shop • Banks • Hotels |
|
Item |
Pop up floor socket |
|
Model |
14157 |
|
Type |
Pop up floor socket |
|
Panel Material |
Zinc alloy |
|
Surface finish |
Spray paint |
|

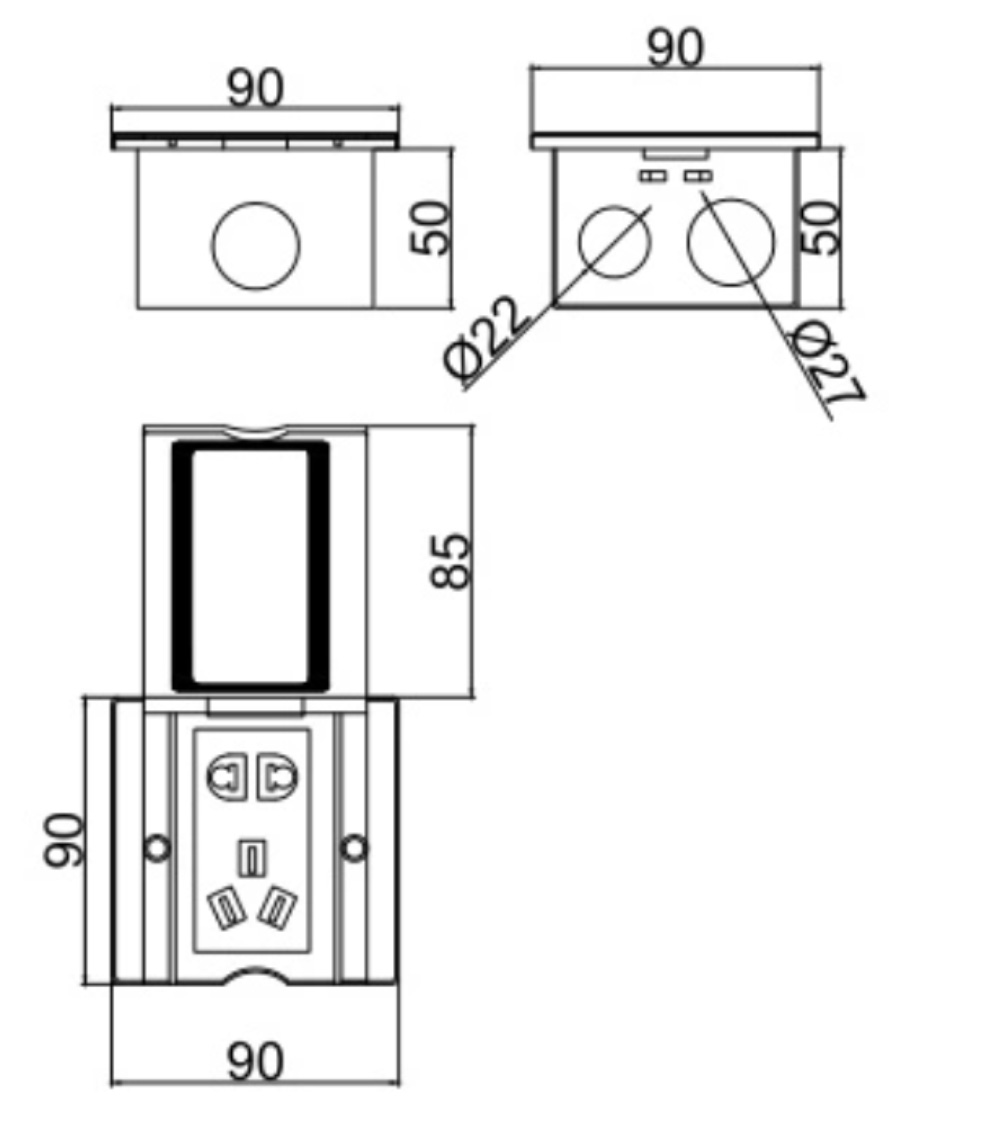

Panel Dimension (mm) |
90*90 |
|
Cutout (mm) |
80*82 |
|
Capacity of modules |
3 ways modules |
|
Sink box Thickness |
1.0mm |
|
Sink box Material |
Steel+Zinc plated |
|
Available modules |
45*45/45*22.5(mm) |
|
Inner box Size (mm) |
100*100*60 |
|
Outer box Size(mm) |
237*106*110 |
|
Available modules |
45*45/45*22.5(mm) |
|
N.W(kg) |
0.275 |
|
G.W(kg) |
0.3 |
|
Carton size(cm) |
459*338*243 |
