מגבר מיני בהספק 60W תוצרת COPA
מגבר מיני בהספק 60W תוצרת COPA
16680 :מק"ט
יציאת רמקולים 100V / 4-16ohm.
בעל 2 כניסות מיקרופון PL + כניסת מיקרופון XLR עדיפות Priority ובנוסף 2 כניסות AUX/Line ב 2RCA.
כולל רדיו FM, בלוטוס USB, SD-Card, Phantom, Bluetooth ווסתי Bass + Treble.
קיים ווסת שמע לכל כניסה נפרדת ובנוסף ווסת ווליום MASTER כללי.
מגיע עם נורת הגנה.
מתח הזנה AC220 / DC24V.
משקל: 4.3 ק"ג.
מידות: רוחב 32 עומק 21 גובה 9 (ס"מ)
• Ideal for classroom sound system use
• Built-in 100V/70V transformer technology
• Tabletop amplifier with Mp3 player, FM radio & bluetooth
• Rate power output at, 60W to 120W. Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms
• Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
• LED indicators for power, clip, protect and signal
• Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel.
Mic2-3 microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input
and one RCA line output. Telephone input with VOX priority and MOH (Music on Hold).
• Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master
• With short-circuit, clip, overload and high temp protection
• AC220V or 115V & 24V DC both operation system

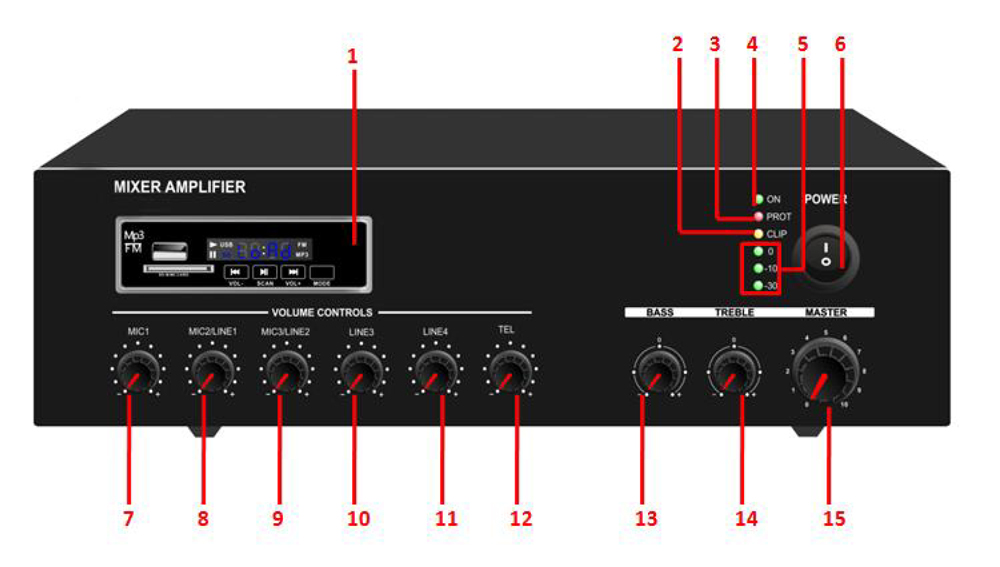

1. Mp3/FM/Blue tooth media player module.
2. Power indicator.
3. Protection Indicator.
4. Clip Indicator.
5. Output Level Meters.
6. AC power switch.
7. Mic1 Attenuator.
8. Mic/Line Input 2 Attenuator.
9. Mic/Line Input 3 Attenuator.
10. Line Input 1 Attenuator.
11. Line Input 2 Attenuator.
12. Tel Input Attenuator
13. Bass
14. Treble
15. Master Volume Control

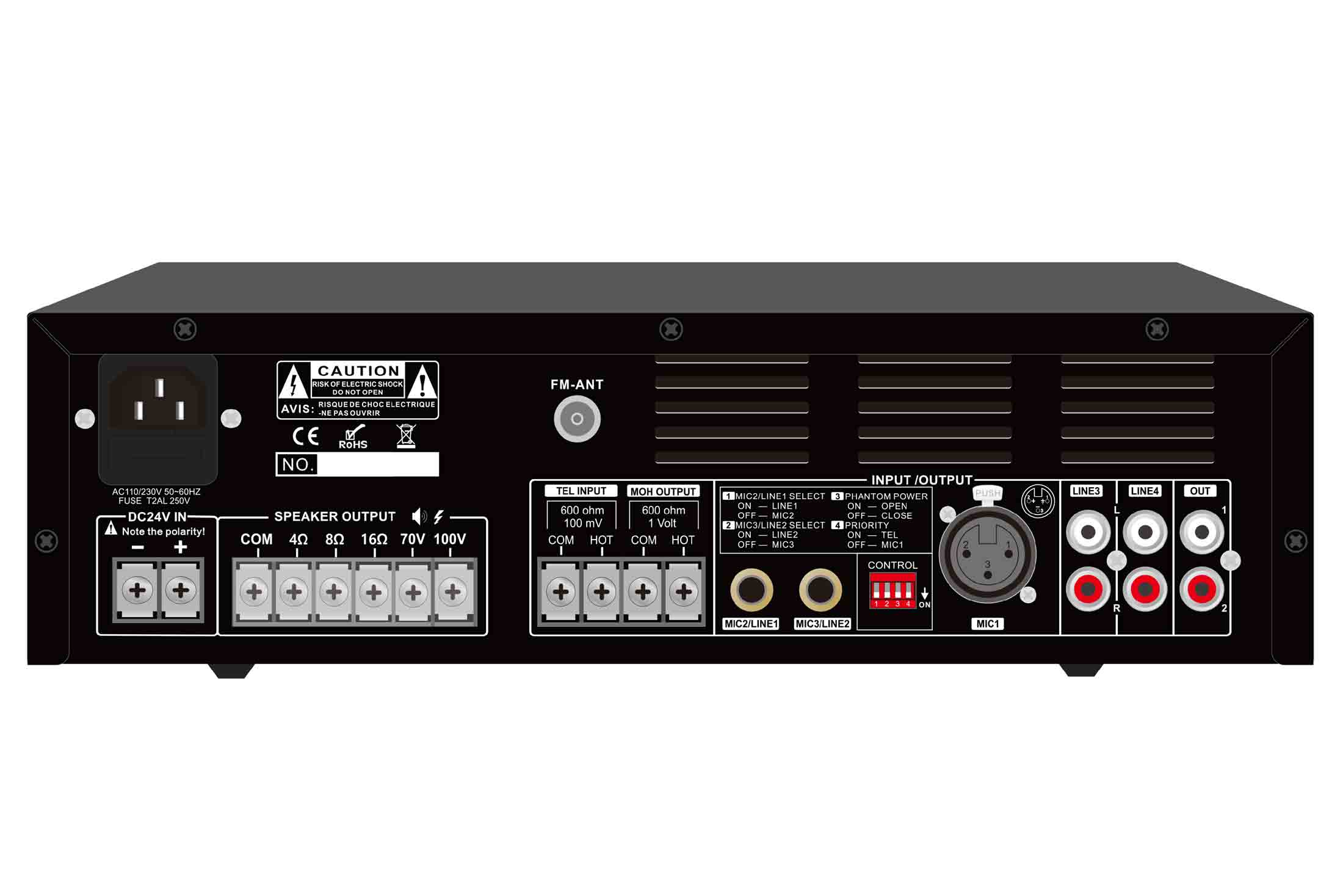

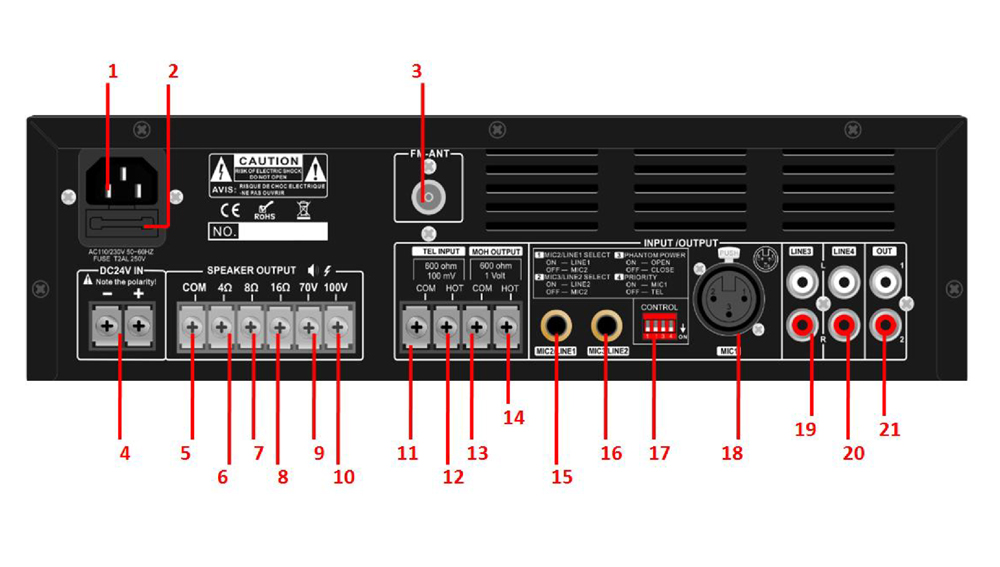

Rear Panel:
1. AC Power Socket.
2. AC fuse
3. FM antenna
4. 24V DC Battery Input.
5. Speaker output COM.
6. Speaker output 4 Ohms (+).
7. Speaker output 8 Ohms (+).
8. Speaker output 16 Ohms (+).
9. Speaker output 70V (+).
10. Speaker output 100V (+).
11. Tel input COM (-).
12. Tel input HOT (+), 600 Ohms, 1 Volt.
13. MOH output COM (-).
14. MOH output HOT (+).
15. Input 2 Mic/Line Selector.
16. Input 3 Mic/Line Selector.
17. Dipswitch for MIC/LINE selector, phantom power and microphone priority.
18. Microphone 1 input.
19. Line 3 Input.
20. Line 4 Input.
21. Line Output.
|
Item |
Mixer Amplifiers with USB/SD & FM & Blue Tooth, 60W, 120W |
|
|
Model |
16680 |
16681 |
|
Rated Power Output |
60W |
120W |
|
Speaker Output |
100V or 70V & 4Ohms-8 Ohms-16 Ohms |
|
|
Connector |
Mic1 input by balanced XLR with phantom power |
|
|
Attenuation |
Microphone1-3, line1-2 and Mp3/FM, bass/treble and master |
|
|
Input |
MIC1-3: 5-8mV, 600 ohms; Line, 150-470mV, 10Kohms, unbalanced RCA |
|
|
Line Out |
0.775(0dBV) |
|
|
Frequency Response |
60Hz-15kHz(±3dB) |
|
|
S/N Ratio |
Line > 85dB, Mic> 72dB |
|
|
THD |
Less than 0.5% |
|
|
Protection |
short-circuit, clip, overload and high temp protection |
|
|
Power Consumption |
100W |
200W |
|
Power Supply |
AC220V or 115V & 24V DC /50-60Hz |
|
|
Dimension |
320(W)×210(D)×90(H)mm |
|
|
Weight |
4.3kg |
4.9kg |
