מגבר מיקסר 500W עם 6 אזורים נשלט מיקרופון אזורים
• Public address commercial mixer power Amplifier.
• 19” rack mount Amplifier of 2U height.
• Rated outputs of 240W, 350W to 500W.
• 6 zone speaker outputs of 100V or 70V.
• Six zone speaker outputs with independent volume control.
• Built-in MP3 player by USB & SD, FM tuner & blue tooth.
• Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4 (XLR).
• Line 1-2 inputs on rear panel by RCA.
• EMC input on rear panel with highest priority by RCA.

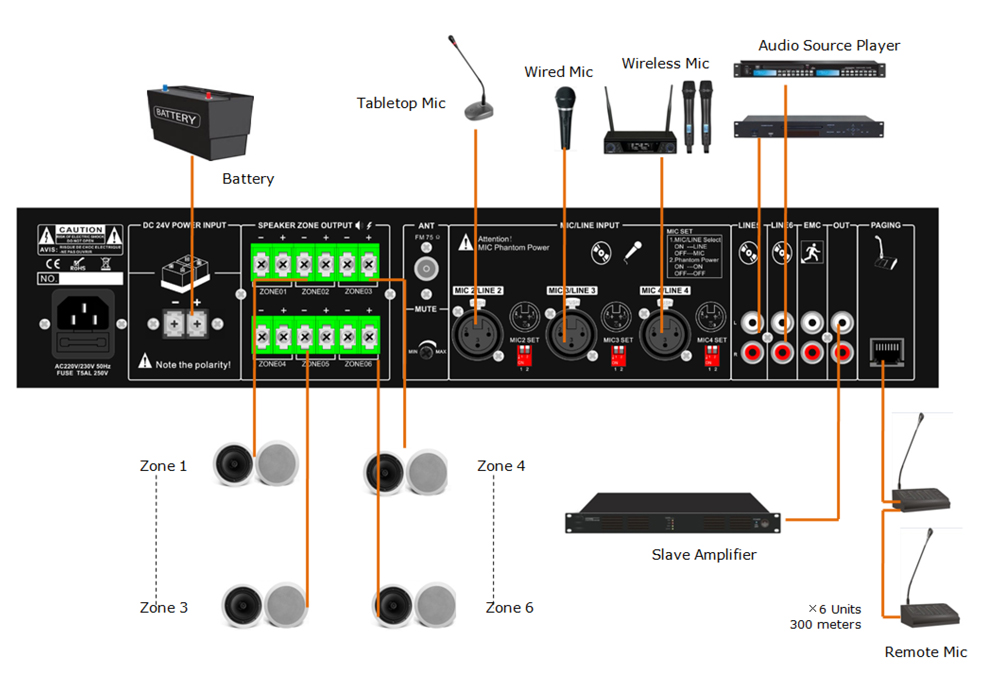

• One Amplifier capacity of 6 remote paging microphones up to 300 meters.
• Microphone1 of VOX features of highest input priority except EMC input.
• Volume control for Mic1-4 and line 1-2, bass & treble and zone volume control on front panel.
• AC and DC Power, protection, clip six zone status indicators and output level meters.
• Overload, short circuit and high temp protection.
• AC 230V and DC24V operation system.

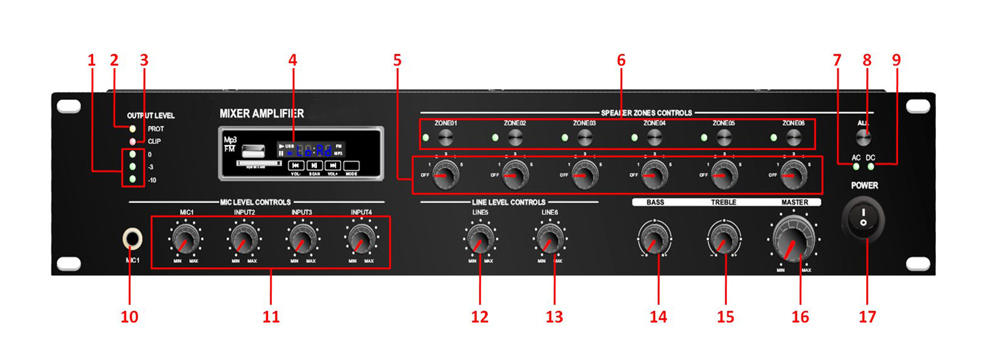

Front Panel:
1. Indicator.
2. Clip Indicator.
3. Output Level Meters.
4. MP3 MODULE with FM & Blue Tooth.
5. Speaker Zone1-6 Output Volume Attenuators.
6. Speaker Zone1-6 Selectors with Indicators.
7. Protection AC Power Indicator.
8. All Speaker Zone Selector
9. DC Power Indicator
10. Mic1 Input with VOX priority except EMC Input.
11. Mic1 and Input2-4 Attenuators.
12. Line 5 Attenuator
13. Line 6 Attenuator
14. Bass
15. Treble
16. Master Volume Control
17. AC Power Switch

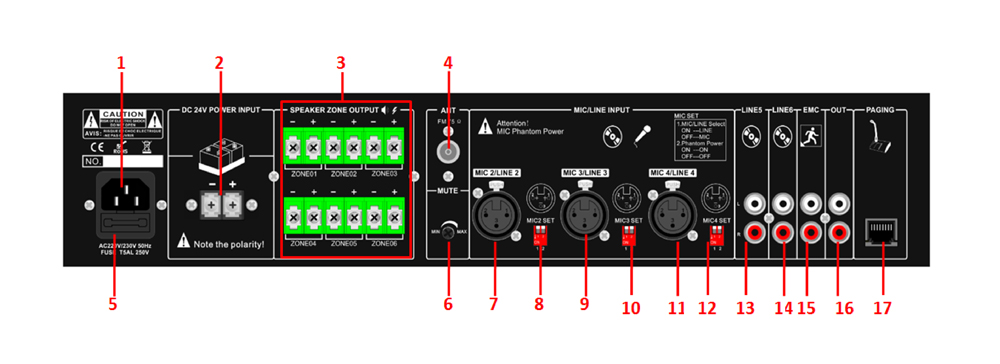

Rear Panel:
1. AC Power Socket.
2. 24V DC Battery Input.
3. Speaker Zone 1-6 Outputs
of 100 volt or 70 volt.
4. FM Antenna.
5. AC Fuse.
6. MIC1 VOX Mute Attenuator.
7. Mic/Line 2 Input.
8. Input 2 Mic/Line Selector (Mic 2 with 48V phantom power).
9. Mic/Line 3 Input.
10. Input 3 Mic/Line Selector (Mic 3 with 48V phantom power).
11. Mic/Line 4 Input.
12. Input 4 Mic/Line Selector (Mic 4 with 48V phantom power).
13. Line 5 Input.
14. Line 6 Input.
15. EMC Input from Fire Alarm System with Highest Priority
16. Line Output.
17. RJ45 Input for Remote Paging Microphone.
1. Indicator.
2. Clip Indicator.
3. Output Level Meters.
4. MP3 MODULE with FM & Blue Tooth.
5. Speaker Zone1-6 Output Volume Attenuators.
6. Speaker Zone1-6 Selectors with Indicators.
7. Protection AC Power Indicator.
8. All Speaker Zone Selector
9. DC Power Indicator
10. Mic1 Input with VOX priority except EMC Input.
11. Mic1 and Input2-4 Attenuators.
12. Line 5 Attenuator
13. Line 6 Attenuator
14. Bass
15. Treble
16. Master Volume Control
17. AC Power Switch
Rear Panel:
1. AC Power Socket.
2. 24V DC Battery Input.
3. Speaker Zone 1-6 Outputs
of 100 volt or 70 volt.
4. FM Antenna.
5. AC Fuse.
6. MIC1 VOX Mute Attenuator.
7. Mic/Line 2 Input.
8. Input 2 Mic/Line Selector (Mic 2 with 48V phantom power).
9. Mic/Line 3 Input.
10. Input 3 Mic/Line Selector (Mic 3 with 48V phantom power).
11. Mic/Line 4 Input.
12. Input 4 Mic/Line Selector (Mic 4 with 48V phantom power).
13. Line 5 Input.
14. Line 6 Input.
15. EMC Input from Fire Alarm System with Highest Priority
16. Line Output.
17. RJ45 Input for Remote Paging Microphone.
|
Item |
Mixer Amplifiers 6 Zone with Mp3/FM/BT, 240W/ 350W/ 500W |
||
|
Model |
16686 |
16687 |
16688 |
|
Rated Power Output |
240W |
350W |
500W |
|
Speaker Output |
100V of 6 zones |
||
|
Input |
Mic1-4: 2.5mV, Line1-2: 250mV; EMC: 250mV |
||
|
Frequency Response |
80-16KHz |
||
|
THD |
<0.1% |
||
|
S/N Ratio |
>70dB |
||
|
Protection |
High temp, short circuit, clip & overload protection |
||
|
Power Supply |
AC230V or AC110V, 50-60Hz |
||
|
Power Consumption |
400W |
500W |
650W |
|
Dimension |
438(W)×405(D)×88(H)mm |
||
|
Weight |
10.5kg |
10.9kg |
11.5kg |
