כבל תקשורת FTP CAT6 קשיח 100/305 מ׳

Product

CAT6

Model

17010

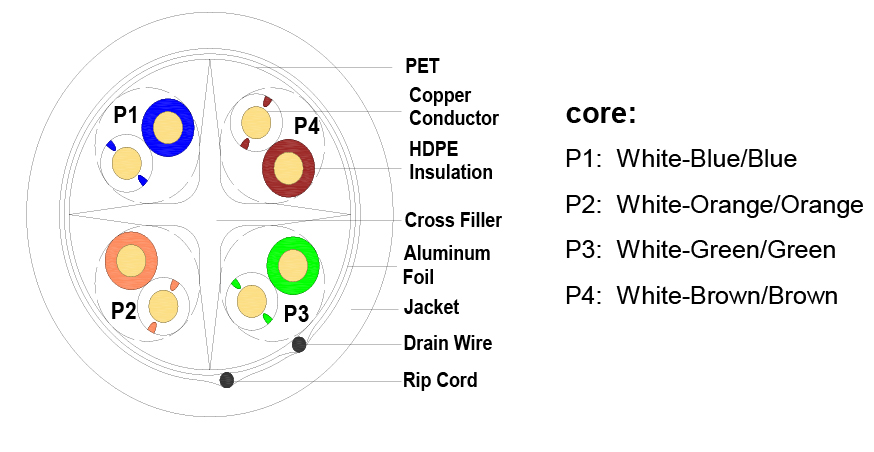

Structure

Structure A

Conductors

Structure AWG

AWG

23#(1/23)

Material

---

Solid Bare Copper

Diameter

mm

? 0.56+/-0.008

Insulation

Material

---

HDPE

Diameter

mm

? 1.00+/-0.05

Average Thickness

mm

0.25+/-0.05

Shielding1

Type

---

----

Assimbly

Direction

---

S

No. of Insulations

Pair

4

Shielding2

Material

---

Al-Foil Screneed

Drain wire

Shield

----

2.6AWG. TC

Jacket

Material

----

PVC

Diameter

mm

? 7.4+/-0.3

Average Thickness

mm

0.6+/-0.1

Flame Rate

----

---

Cable under the minimum tension

>=400N

Conductor elongation

>=15%

Jacket before Aging

Tensile Strength

Elongation

Impedance

1-250MHz 100±15(Ohms)

Rated Temperature

75?

DC Resistance Unbalance(%)

Max 2.5

DC Resistance 20?

?93.8(Ohms/Km)

Pair-to-Gruond Capacitance Unbalance

330(pF/100M)

Insulation Resistance

>5000M?*Km

Dielectric Strength

Dc 2500v 2s

Frequence

Min.

Rl

Nom.

Il

(Mhz)

(Db)

(Db/100m)

(Ns/100m)

Ns/100m)

(Db)

(Db)

(dB/100M)

(Db/100m)

1

20.0

2.0

570.0

45.0

65.3

62.3

63.8

60.8

4

23.0

3.8

552.0

45.0

56.3

53.3

51.8

48.8

10

24.0

5.3

545.4

45.0

50.3

47.3

43.8

40.8

16

25.0

6.0

543.0

45.0

47.2

44.2

39.7

36.7

20

25.0

7.6

542

45.0

54.8

52.8

41.8

38.8

25

24.3

9.5

541

45.0

53.3

51.3

37.8

34.8

31.25

23.6

10.7

540

45.0

51.9

49.9

37.9

34.9

62.5

21.5

15.4

539

45.0

47.4

45.4

31.9

28.9

100

20.1

19.8

538

45.0

44.3

42.3

27.8

24.8

200

18.0

29.0

537

45.0

39.8

37.8

21.8

18.8

250

17.3

32.8

536

45.0

38.3

36.3

19.8

16.8
