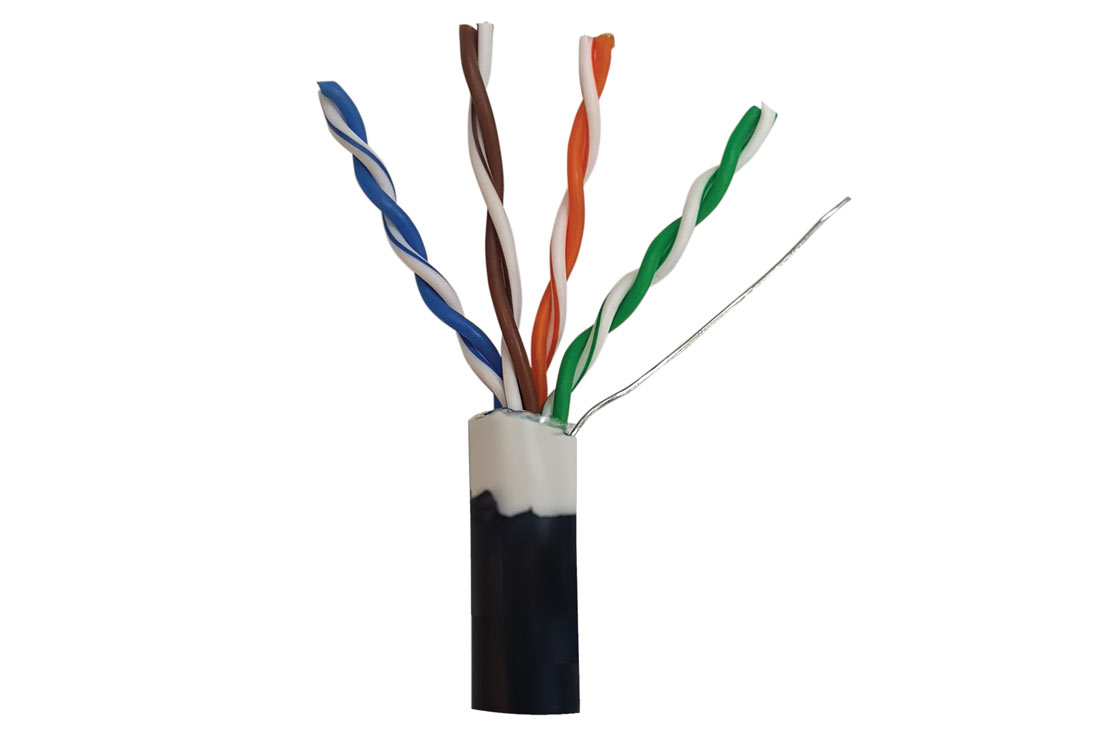

כבל תקשורת חיצוני FTP CAT5e NYY קשיח נחושת מלא

Product

FTP CAT5E NYY

Model

17003

Type

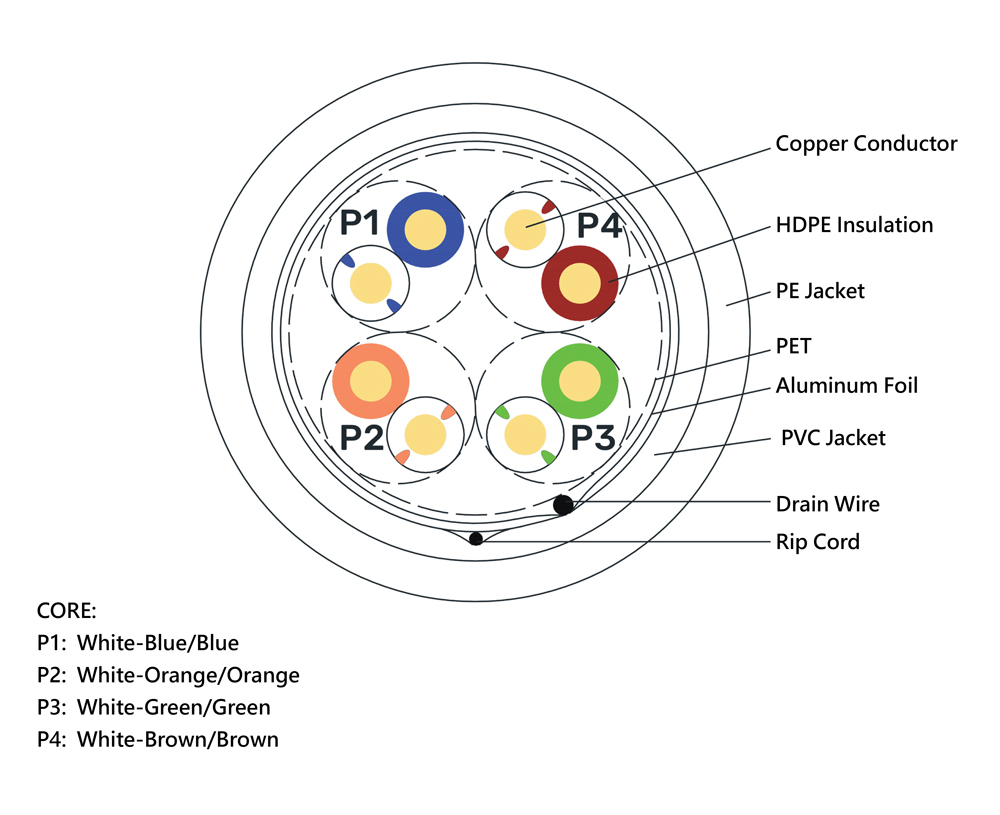

F/UTP CAT5E 4*2*24AWG PVC+LDPE

Structure

Structure A

Conductors

Structure AWG

AWG

24#(1/24)

Material

---

Solid Bare Copper

Diameter

mm

diameter 0.50+/-0.008

Insulation

Material

---

HDPE

Diameter

mm

diameter 1.00+/-0.05

Average Thickness

mm

0.25+/-0.05

Shielding1

Type

---

----

Assimbly

Direction

---

S

No. of Insulations

Pair

4

Shielding2

Material

---

Al-Foil Screneed

Drain Wire

Shield

----

2.6AWG TC

Jacket

Material

----

PVC+LDPE

Diameter

mm

diameter (5.9+7.2)+/-0.3

Average Thickness

mm

(0.55+0.65)+/-0.1

Flame Rate

----

---

PVC

LDPE

Cable under the minimum tension

>=400N

>=400N

Conductor elongation

>=15%

>=15%

Jacket before Aging

Tensile Strength

Elongation

>=13.5Mpa
>=150%

>=9.7Mpa
>=350%

Jacket After Aging
Tensile Strength
Elongation

>=12.5Mpa
>=125%

>=75%×Tensile Strength before Aging

>=75%×Elongation before Aging

Impedance

1-100MHz 100±15(Ohms)

Rated Temperature

75C

DC Resistance Unbalance(%)

Max 2.5

DC Resistance 20?

<110(Ohms/Km)

Pair-to-Gruond Capacitance Unbalance

330(pF/100M)

Insulation Resistance

>5000M Omega*Km

Dielectric Strength

Dc 2500V 2S

Frequence

Min.

Rl

Nom.

IL

Max.
DOP

Max.
SKEW

Min.
NEXT

Min.
PSNEXT

Min.
ACR-F

Min.
PSACR-F

(MHz)

(dB)

(dB/100m)

(ns/100m)

ns/100m)

(dB)

(dB)

(dB/100M)

(dB/100m)

1

20.0

2.0

570.0

45.0

65.3

62.3

63.8

60.8

4

23.0

4.1

552.0

45.0

56.3

53.3

51.8

48.8

10

25.0

6.5

545.4

45.0

50.3

47.3

43.8

40.8

16

25.0

8.2

543.0

45.0

47.2

44.2

39.7

36.7

20

25.0

9.3

542.1

45.0

45.8

42.8

37.8

34.8

31.25

23.6

11.7

540.4

45.0

42.9

39.9

33.9

30.9

62.5

21.5

17.0

538.6

45.0

38.4

35.4

27.9

24.9

100

20.1

22.0

537.6

45.0

35.3

32.3

23.8

20.8
