כבל תקשורת STP CAT-5E קשיח נחושת מלא 100/305 מטר

 Product

 CAT 5E

 Model

17006

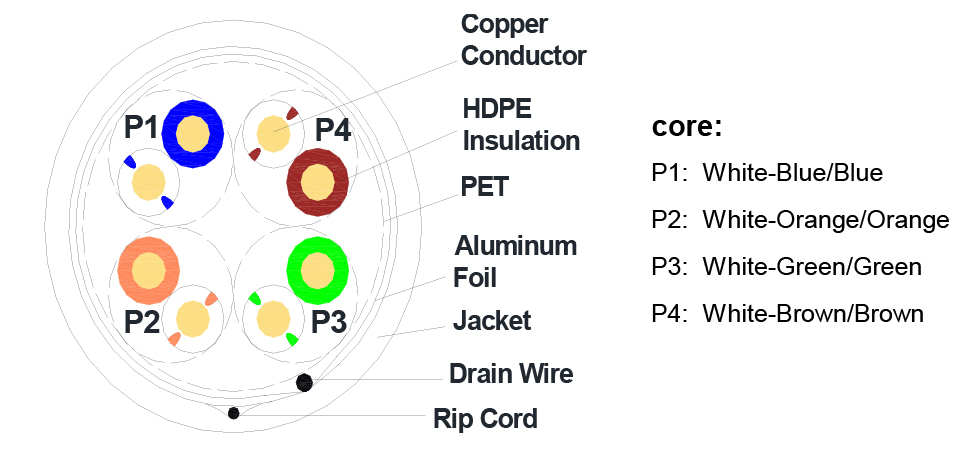

 Structure

Structure A

 Conductors

Structure AWG

 AWG

24#(1/24)

Material

---

Solid Bare Copper

Diameter

mm

? 0.50+/-0.008

 Insulation

Material

---

HDPE

Diameter

mm

? 1.00+/-0.05

Average Thickness

mm

0.25+/-0.05

 Shielding1

Type

---

----

 Assimbly

Direction

---

S

No. of Insulations

Pair

4

 Shielding2

Material

---

Al-Foil Screneed

 Drain wire

Shield

----

2.6AWG. TC

Jacket

Material

----

PVC

Diameter

----

? 6.1+/-0.3

Average Thickness

mm

0.6+/-0.1

Flame Rate

----

---

 Cable under the minimum tension

 >=400N

 Conductor elongation

 >=15%

 Jacket before Aging

 Tensile Strength

 Elongation

 Impedance

 1-100MHz 100±15(Ohms)

 Rated Temperature

 75?

 DC Resistance Unbalance(%)

 Max 2.5

 DC Resistance 20?

 ?93.8(Ohms/Km)

 Pair-to-Gruond Capacitance Unbalance

 330(pF/100M)

 Insulation Resistance

 >5000M?*Km

 Dielectric Strength

 Dc 2500v 2s

Frequence

Min.

Rl

Nom.

Il

(Mhz)

(Db)

(Db/100m)

(Ns/100m)

Ns/100m)

(Db)

(Db)

(dB/100M)

(Db/100m)

1

20.0

2.0

570.0

45.0

65.3

62.3

63.8

60.8

4

23.0

4.1

552.0

45.0

56.3

53.3

51.8

48.8

10

25.0

6.5

545.4

45.0

50.3

47.3

43.8

40.8

16

25.0

8.2

543.0

45.0

47.2

44.2

39.7

36.7

20

25.0

9.3

542.1

45.0

45.8

42.8

37.8

34.8

31.25

23.6

11.7

540.4

45.0

42.9

39.9

33.9

30.9

62.5

21.5

17.0

538.6

45.0

38.4

35.4

27.9

24.9

100

20.1

22.0

537.6

45.0

35.3

32.3

23.8

20.8
