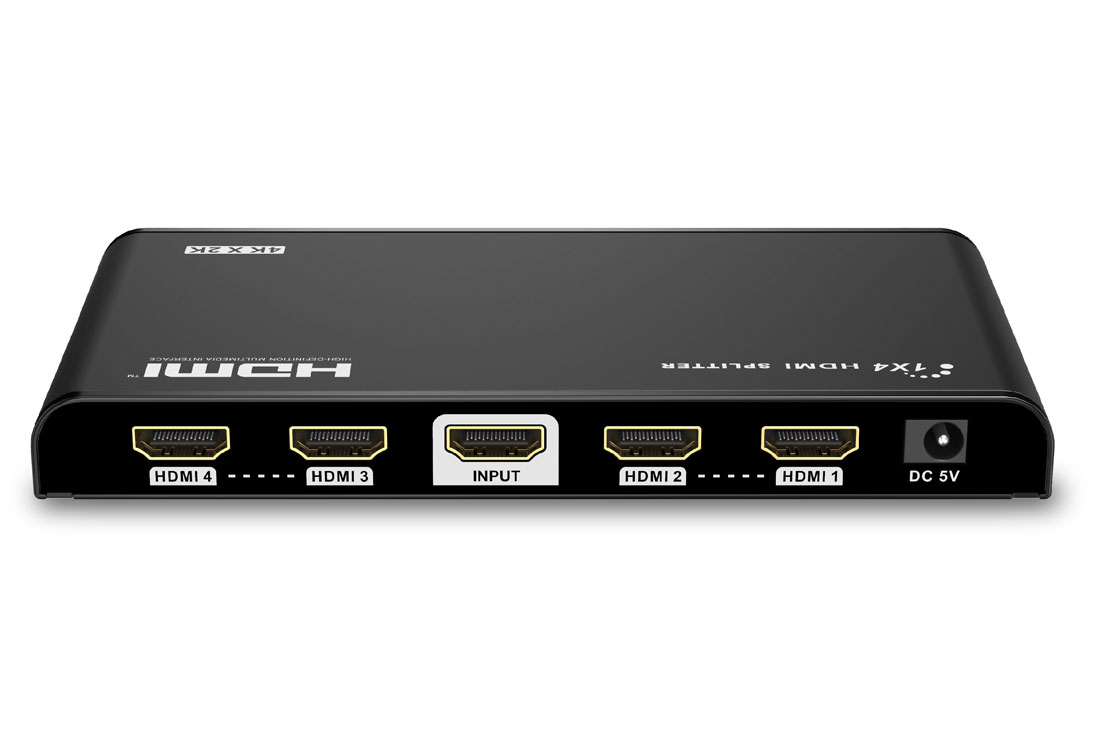

מפצל HDMI 1X4 4K
מפצל HDMI 1X4 4K
18116 :מק"ט
מפצל את אות הוידאו HDMI ממקור אחד ל- 4 תצוגות פלט (מסך/מקרן ועוד..) במקביל.
תומך רזולוציה 4K 30Hz.
תומך HDCP.
מתח הזנה: DC5V 1A (כלול בערכה)
HDMI splitter function:
|
Item |
4Kx2K 1x4 HDMI Splitter |
|
|
Model |
18116 |
|
|
Features |
HDMI Splitter |
Distribute 1 HDMI source to 4 HDMI displays simultaneously |
|
HDMI Extender |
Extend HDMI signal up to 30 meters for input and 25 meters for output |
|
|
HDMI Resolution |
Up to 4K X 2K and support full 3D fomat |
|
|
Energy-Saving |
With energy-saving technology, power consumption is as low as 1W |
|
|
Power |
Power supply mode |
Power adaptor 5V/1A |
|
Voltage |
DC 5V |
|
|
Consumption |
<5W |
|
|
HDMI Input |
HDCP Compliance |
Yes |
|
HDMI Resolution support |
480i@60Hz,480p@60Hz, 576i@50Hz,576p@50Hz, 720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz,1080p@24Hz 3D, 720p@50/60Hz 3D, 4K X 2K |
|
|
HDMI graphic resolution support |
640x480@60Hz,800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz,1280x960@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz,1600x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz |
|
|
Color format support |
24-bits /Deep color 30 bits/ Deep color 36-bits |
|
|
Max. Data rate |
10.2Gbps |
|
|
TMDS signal |
0.5~1.5Vp-p(TMDS) |
|
|
DDC signal |
5Vp-p(TTL) |
|
|
The length for HDMI cable |
<=30m(AWG26 standard HDMI cable) |
|
|
HDMI Output |
HDCP Compliance |
Yes |
|
HDMI Resolution support |
480i@60Hz,480p@60Hz, 576i@50Hz,576p@50Hz, 720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz,1080p@24Hz 3D, 720p@50/60Hz 3D, 4K X 2K |
|
|
HDMI graphic resolution support |
640x480@60Hz,800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz,1280x960@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz,1600x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz |
|
|
Color format support |
24-bits /Deep color 30 bits/ Deep color 36-bits |
|
|
Max. Data rate |
10.2Gbps |
|
|
TMDS signal |
0.5~1.5Vp-p(TMDS) |
|
|
DDC signal |
5Vp-p(TTL) |
|
|
The length for HDMI cable |
<=25m(AWG26 standard HDMI cable) |
|
|
Protection Prot |
ESD protection |
1a Socketed discharge Level 3 1b Air discharge Level 3 Executive standard:IEC61000-4-2 |
|
Operating Environment |
Operation Temperature |
0~55? |
|
Storage Temperature |
—20~70? |
|
|
Relative Humidity (non-condensing) |
0~95% |
|
|
Product |
Dimension (L×W×H) Material Color Weight |
156mm×79mm×17mm Aluminum alloy Black 205g |
|
Reliability (MTBF) |
>30000 hours |
|
