מרחיק HDMI ע"ג זוג חוטים


מרחיק HDMI ע"ג זוג חוטים

18166 :מק"ט

מרחיק HDMI 1080P עד 300 מ´ ע"ג זוג חוטים - כבל טלפון/רשת/חשמל/קואקס - חובה נחושת מלא, אפשרות לשרשר עד 4 מקלטים בו זמנית מרחק עד 50 מ´

הורדת מפרט טכני
• Plug and play, easy for installation
• Supports one way HDMI  loop output
• Supports bi-directional RS232 pass back
• Transmission distance is up to 300 meters
• Applies advanced HDbitT over IP technology
• Supported resolution is up to full HD 1080p@60Hz
• Transmits HDMI signal over any simple 2 conductor cables, it could be network cable, power line,
coaxial cable, telephone wire etc
• IR passback for controlling the transmitter side source signal easily

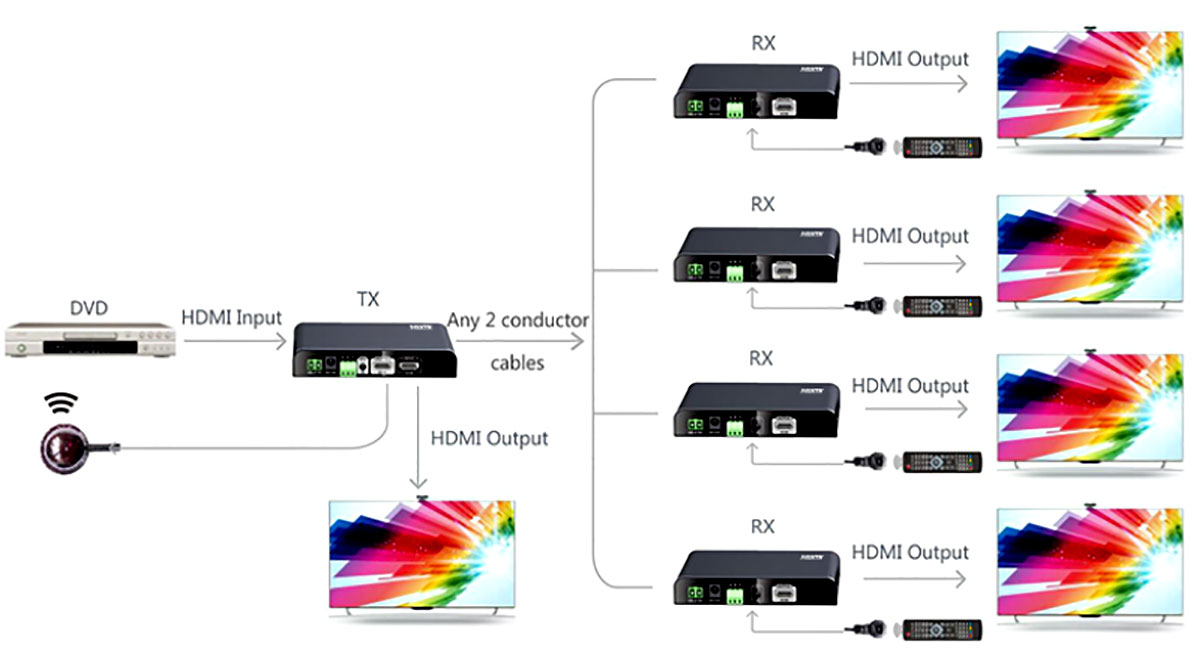

• Supports multicast that one transmitter unit is capable of driving up to 4 receiver units


HDMI Extender  Items
18166  Model
HDMI1.3, Compatible with HDCP1.3  HDMI Signal
18M bps  Network bandwidth
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Support resolutions
PCM  Audio format
Transmission distance is up to 300 meters  Transmission distance
Supports 20~60KHz IR devices  IR signal
Supports Bi-directional RS232 pass back  RS232
 0C~60C  Working Temperature
-20C~70C  Storage temperature
DC12V/2A  Power Supply
DC12V/2A  Power Consumption
TX: 7.5W;  RX: 7W  Dimensions
 228(L)x125.4(W)x25(H)mm  Weight
210g*2pcs  Color
